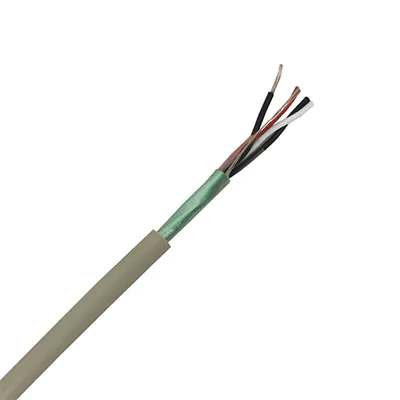

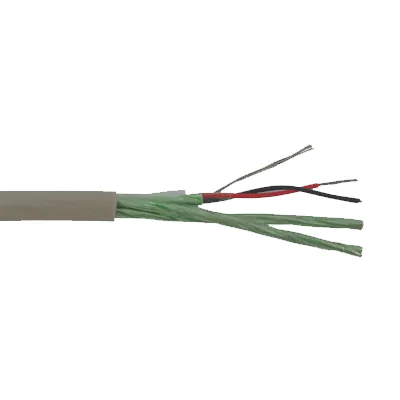

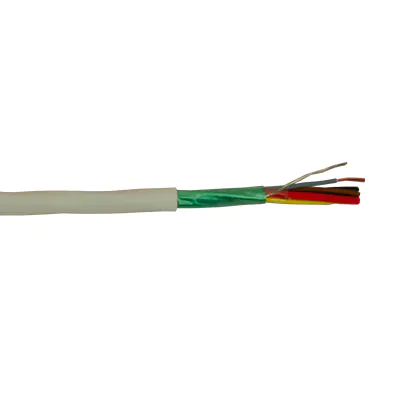

250V POS Instrument Cable Construction
| Conductor | Flexible tinned copper wires |
| Insulation | PE (Polyethylene) |
| Assembly | Twisted pairs laid up together |
| Screen | Aluminium/polyester tape + flexible tinned copper drain wire |
| Overlap: 25% | |
| Coverage: 100% | |
| Outer sheath | PVC (Polyvinyl chloride) |
| Colour: Grey (Similar to RAL 7032) |
250V POS Instrument Cable Application
Flexible data transmission cable for use in instrumentation systems of industrial processes in fixed installations. Specially recommended when a good electromagnetic protection as well as a good autonomy of each of the pairs is required thanks to the individual shielding on each of them.
250V POS Instrument Cable Standards
- Ref. standard for drawing: Based on UNE 212016
- Flame Retardant: UNE-EN 60332-1 (IEC 60332-1)
250V POS Instrument Cable Technical characteristics
| Operating voltage | 250 V |
| (Not to be used for direct connection to main power network or other low impedance sources) | |
| Test Voltage | 1000V |
| Capacitance | 100 pF/m Max. |
| Operating Tª (conductor) | -15°C to +70°C |
| Min. bending radius | 8xD |
250V POS Instrument Cable Specification
| NxS (mm2) | Ø (mm) | Weight (kg/km) | R at 20°C (Ohm/Km) |
|---|---|---|---|
| 1x2x0,22 | 3,6 | 17 | 91 |
| 2x2x0,22 | 4,7 | 26 | 91 |
| 3x2x0,22 | 5 | 32 | 91 |
| 4x2x0,22 | 5,6 | 41 | 91 |
| 5x2x0,22 | 6,1 | 48 | 91 |
| 6x2x0,22 | 6,6 | 55 | 91 |
| 7x2x0,22 | 6,6 | 60 | 91 |
| 8x2x0,22 | 7 | 67 | 91 |
| 16x2x0,22 | 9,9 | 128 | 91 |
| 1x2x0,34 | 4,1 | 22 | 59 |
| 2x2x0,34 | 5,7 | 36 | 59 |
| 3x2x0,34 | 6 | 45 | 59 |
| 4x2x0,34 | 6,5 | 56 | 59 |
| 5x2x0,34 | 7,1 | 66 | 59 |
| 6x2x0,34 | 8 | 80 | 59 |
| 7x2x0,34 | 8 | 89 | 59 |
| 9x2x0,34 | 10,3 | 118 | 59 |
| 12x2x0,34 | 10,6 | 144 | 59 |
| 16x2x0,34 | 11,7 | 183 | 59 |
| 21x2x0,34 | 13,1 | 236 | 59 |
| 1x2x0,50 | 4,6 | 27 | 40,1 |
| 2x2x0,50 | 6,5 | 46 | 40,1 |
| 3x2x0,50 | 6,8 | 59 | 40,1 |
| 4x2x0,50 | 7,7 | 77 | 40,1 |
| 5x2x0,50 | 8,4 | 91 | 40,1 |
| 6x2x0,50 | 9,1 | 106 | 40,1 |
| 7x2x0,50 | 9,1 | 118 | 40,1 |
| 9x2x0,50 | 11,8 | 157 | 40,1 |
| 12x2x0,50 | 12,4 | 200 | 40,1 |
| 16x2x0,50 | 13,8 | 255 | 40,1 |
| 21x2x0,50 | 18,2 | 364 | 40,1 |
