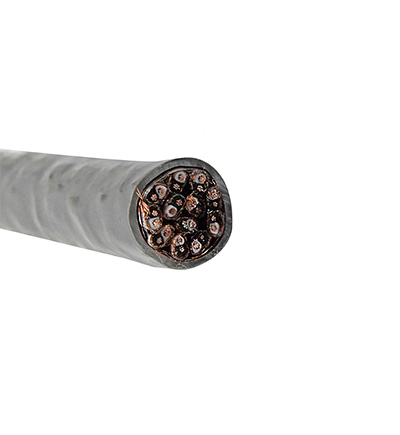

POS Cable Construction
| Conductor | Flexible bare copper wires Class V Acc. to UNE-EN 60228 |
| Insulation | PVC (Type TI51) Identification: Blue + Black numbered |
| Assembly | Two conductors insulated twisted forming a pair |
| General assembly | Wired pairs in concentric layers |
| Overall screen | Polyester tape separator Alu/Polyester Tape + tinned copper wire drain |
| Outer sheath | PVC (Type TM51) Colour standard: Black |
POS Cable Construction Application
Flexible instrumentation and control cable for analog or digital signal transmission and control of industrial equipment, when protection against electrical noise is required.
POS Cable Standards
- Design: According EN 50288-7
- CPR Classification (Euroclass): Eca
- (According UNE-EN 50575)
- Flame Retardant: UNE-EN 60332-1 (IEC 60332-1)
POS Cable Technical Characteristics
| Operating voltage | 500V |
| Test Voltage | 2000V |
| Operating Tª (conductor) | Instalación fija: -15°C a +70°C |
| During installation: 0°C | |
| Minimum Shortcut (Max. 5 seg): 160°C | |
| Min. bending radius | Normal service: |
| 4xD (Diameter up to 8 mm) | |
| 5xD (Diameter up to 12 mm) | |
| 6xD (Diameter > 12 mm) | |
| Insulation resistance | 10 MOhm*Km Min |
| Mutual capacitance | <250 nF/Km |
POS Cable Specification
| NxS (mm2) | Ø (mm) | R at 20°C (Ohm/Km) | Weight (kg/km) |
|---|---|---|---|
| 2x2x0.75 | 8.4 | 26 | 86 |
| 3x2x0.75 | 9.4 | 26 | 110 |
| 4x2x0.75 | 10.2 | 26 | 138 |
| 6x2x0.75 | 12.7 | 26 | 199 |
| 7x2x0.75 | 14.4 | 26 | 219 |
| 10x2x0.75 | 16.5 | 26 | 319 |
| 12x2x0.75 | 17 | 26 | 371 |
| 16x2x0.75 | 19.1 | 26 | 481 |
| 20x2x0.75 | 20.3 | 26 | 593 |
| 2x2x1 | 9.2 | 19.5 | 173 |
| 3x2x1 | 10.1 | 19.5 | 215 |
| 4x2x1 | 11.2 | 19.5 | 340 |
| 6x2x1 | 13.6 | 19.5 | 380 |
| 7x2x1 | 15.5 | 19.5 | 420 |
| 10x2x1 | 18 | 19.5 | 599 |
| 12x2x1 | 18.6 | 19.5 | 675 |
| 12x2x1 Blue | 18.6 | 19.5 | 675 |
| 16x2x1 Blue | 20.8 | 19.5 | 700 |
| 18x2x1 Blue | 22.5 | 19.5 | 725 |
| 20x2x1 Blue | 22.5 | 19.5 | 750 |
| 24x2x1 Blue | 19.5 | ||
| 32x2x1 Blue | 19.5 | ||
| 2x2x1.5 | 10.3 | 13.3 | 155 |
| 3x2x1.5 | 11.3 | 13.3 | 290 |
| 4x2x1.5 | 12.6 | 13.3 | 385 |
| 6x2x1.5 | 15.3 | 13.3 | 522 |
| 7x2x1.5 | 17.4 | 13.3 | 595 |
| 10x2x1.5 | 20.2 | 13.3 | 750 |
| 12x2x1.5 | 20.8 | 13.3 | 820 |
| 16x2x1.5 | 23.5 | 13.3 | 873 |
| 20x2x1.5 | 25 | 13.3 | 987 |
| 2x2x2.5 | 12.3 | 7.98 | 201 |
| 3x2x2.5 | 13.6 | 7.98 | 345 |
| 4x2x2.5 | 15.2 | 7.98 | 450 |
| 6x2x2.5 | 18.6 | 7.98 | 589 |
| 8x2x2.5 | 21.4 | 7.98 | 658 |
| 10x2x2.5 | 24.5 | 7.98 | 1095 |
| 12x2x2.5 | 25.4 | 7.98 | 1250 |
| 16x2x2.5 | 28.7 | 7.98 | 1505 |
| 20x2x2.5 | 30.3 | 7.98 | 1850 |
