FEXOHRAR Overall Screen GSW Braided Armoured PE Instrument Cable

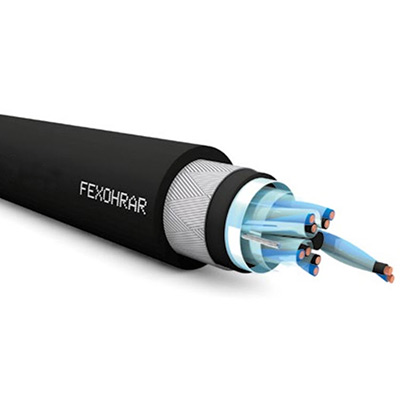

FEXOHRAR Cable Construction

FEXOHRAR Cable Application

FEXOHRAR Cable is suitable for connecting industrial electrical instruments, refineries, natural gas plants, and chemical industry equipment. Suitable for direct burial.

• Oil and Gas: Refineries, offshore platforms, and pipelines.
• Chemical and Pharmaceutical Plants: Areas requiring critical protection against chemical and oil contamination.
• Power Generation: Interior and surrounding areas of substations and power generation facilities.
• Water Treatment and Wastewater: Suitable for both above-ground and buried environments.
• Mining: Scenarios involving heavy machinery operations and physical damage.

FEXOHRAR Cable Characteristics

• Voltage rating Um: 300/500 V
• Insulation resistance: ≥ 1500 MΩxkm
• Dielectric test cond./cond.: 1500 V r.m.s. x 5’
• Dielectric test cond./screen.: 1000 V r.m.s. x 1’
• Inductance: ≤0,9 mH/km
• Maximum operating temperature: +70°C
• Minimum installation temperature: – 10°C
• Maximum short circuit temperature: +160° C
• Minimum bending radius: 10 x maximum external diameter

FEXOHRAR Cable Standards

• Conductor characteristic: CEI EN 60228
• Construction and material characteristic: CEI EN 20-11
• Flame retardant: IEC 60332-1-2
  EN 50265-2-1
  CEI20-35/1-1

FEXOHRAR Cable Features

• Reliable Signal Integrity: The integral shielding layer effectively blocks electrical noise.
• Physical Durability: The steel braided jacket resists crushing, impact, and rodent damage.
• Environmental Resistance: The polyethylene jacket offers superior moisture resistance, chemical corrosion resistance, and direct burial capability.
• Safety: Flame-retardant and oil-resistant properties ensure stable operation in hazardous environments.
• Long-Term Stability: Cross-linked polyethylene insulation maintains consistent performance across a wide temperature range.
