AS/NZS 1802 Mining and Tunneling Cables

ASNZS MTO-209 Cable

CONSTRUCTION
Conductor: Flexible stranded tinned annealed copper conductor
Insulation: EPR R-EP-90
Insulation screen: Semiconductive elastomer
Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
Cradle Separator: Semiconductive PCP
Central Extensible Pilot: EPR covered ﬂexible stranded tinned copper conductor
Outer sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (HD-85-PCP). Heavy duty CPE/CSP sheath can be oﬀered upon request
Standard colour: black
Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 210.1 + 2013 + SIZE + Metre Mark
Core Identiﬁcation: Power core identiﬁcation by coloured tracers in the composite screen (Red, White, Blue). Central Pilot Core identiﬁcation coloured insulation (Grey).

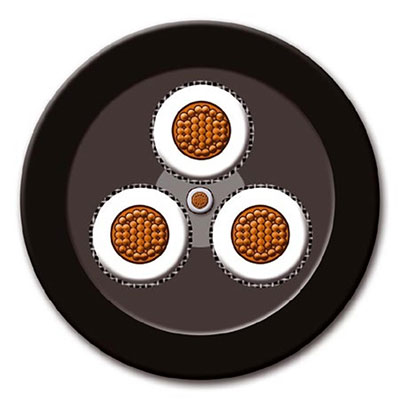

ASNZS MTO-210 Cable

CONSTRUCTION
Conductor: Flexible stranded tinned annealed copper conductor
Insulation: EPR R-EP-90
Insulation screen: Semiconductive elastomer
Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
Cradle Separator: Semiconductive PCP
Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor
Outer sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (HD-85-PCP) . Heavy duty CPE/CSP sheath can be offered upon request
Standard colour: black
Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 210 .1 + 2013 + SIZE + Metre Mark
Core Identification: Power core identification by coloured tracers in the composite screen (Red, White, Blue) .
Central Pilot Core identification coloured insulation (Grey) .

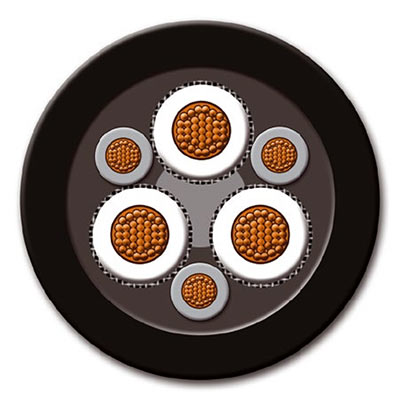

ASNZS MTO-240 Cable

CONSTRUCTION
Conductor: Flexible stranded tinned annealed copper conductor
Conductor screen: Semiconductive compound (for cables having a voltage rating of 3 .3/3 .3kV and above)
Insulation: EPR R-EP-90
Insulation screen: Semiconductive elastomer
Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
Interstitial Pilot: EPR covered flexible stranded tinned copper conductor
Cradle Separator: Semiconductive PCP
Outer sheath: TRATOS OUTER SHEATH®, better than Heavy duty PCP sheath (HD-85-PCP) . Heavy duty CPE/CSP sheath can be offered upon request
Standard colour: black
Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 240 .3 + YEAR + SIZE + Metre Mark
Core Identification: Power core identification by coloured tracers in the composite screen (Red, White, Blue) .
Pilot Core identification coloured insulation (Grey) .

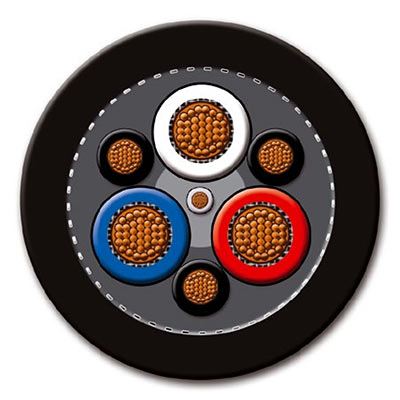

ASNZS MTO-241 Cable

CONSTRUCTION
Conductor: Flexible stranded tinned annealed copper conductor
Conductor screen: Semiconductive compound (for cables having a voltage rating of 3 .3/3 .3kV and above)
Insulation: EPR R-EP-90
Insulation screen: Semiconductive elastomer
Cradle Separator: Semiconductive PCP
Overall Core Screen: Semiconductive PCP filling and covering .
Interstitial Earth Conductor: Semiconductive PCP covered flexible stranded tinned copper conductor .
Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor .
Textile Reinforcement: Open-weave braid reinforcement .
Outer sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (HD-85-PCP) . Heavy duty CPE/CSP sheath can be offered upon request
Standard colour: black
Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 241 .11 + YEAR + SIZE + Metre Mark
Core Identification – 1.1/1.1 kV and 3.3/3.3 kV: Power core identification by coloured insulation (Red, White, Blue) . Interstitial Earth Cores coloured covering (Black) . Central Pilot Core identification coloured insulation (Grey) .
Core Identification – 6.6/6.6 kV and higher voltages: Power core identification printed core numbers on the black semiconductive insulation screen . Interstitial Earth Cores coloured covering (Black) . Central Pilot Core identification coloured insulation (Grey) .

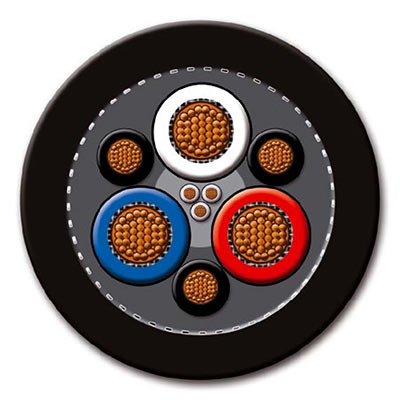

ASNZS MTO-245 Cable

CONSTRUCTION
Conductor: Flexible stranded tinned annealed copper conductor
Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3 .3/3 .3kV and above)
Insulation: EPR R-EP-90
Insulation Screen: Semiconductive elastomer
Cradle Separator: Semiconductive PCP
Overall Core Screen: Semiconductive PCP filling and covering
Interstitial Earth Conductor: Semiconductive PCP covered flexible stranded tinned copper conductor
Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor
Textile Reinforcement: Open-weave braid reinforcement
Outer sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (HD-85_PCP) . Heavy duty CPE/CSP sheath can be offered upon request
Standard colour: black
Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 245 .3 + YEAR + SIZE + Metre Mark
Core Identification: Power core identification by coloured insulation (Red, White, Blue) . Interstitial Earth Cores coloured covering (Black) . Central Pilot Cores identification printed core numbers on the coloured insulation (Grey) .

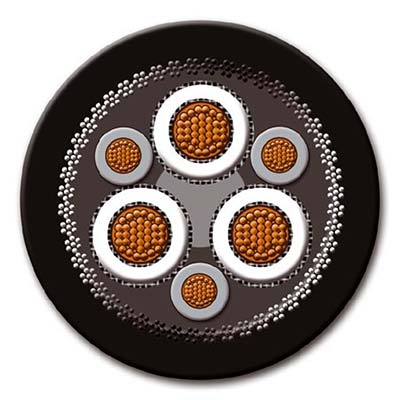

ASNZS MTO-260 Cable

CONSTRUCTION
Conductor: Flexible stranded tinned annealed copper conductor
Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3 .3/3 .3kV and above)
Insulation: EPR R-EP-90
Insulation Screen: Semiconductive elastomer
Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
Cradle Separator: Semiconductive PCP
Interstitial Pilot: EPR covered flexible stranded tinned copper conductor
Inner Sheath: PCP sheath (GP-85-PCP) . CPE/CSP sheath can be offered upon request
Pliable Armour: Galvanized low carbon (mild) steel strands
Outer sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (HD-85-PCP) . Heavy duty CPE/CSP sheath can be offered upon request
Standard colour: black
Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 260 .1 + 2013 + SIZE + Metre Mark
Core Identification: Power core identification by coloured tracers in the composite screen (Red, White, Blue) . Pilot Cores identification coloured insulation (Grey) .

ASNZS MTO-275 Cable

CONSTRUCTION
Conductor: Flexible stranded tinned annealed copper conductor
Insulation: EPR R-EP-90
Cradle Separator: Semiconductive PCP
Overall Core Screen: Semiconductive PCP filling and covering
Interstitial Earth Conductor: Semiconductive PCP covered flexible stranded tinned copper conductor
Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor
Textile Reinforcement: Open-weave braid reinforcement
Outer Sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (HD-85-PCP) . Heavy duty CPE/CSP sheath can be offered upon request
Standard colour: black
Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 275 .1 + 2013 + SIZE + Metre Mark
Core Identification: Power core identification by coloured insulation (Red, White, Blue) . Interstitial Earth Cores coloured covering (Black) . Central Pilot Core identification coloured insulation (Grey) .

ASNZS MTO-209 Specification
ASNZS MTO-210 Specification
ASNZS MTO-240 Specification
ASNZS MTO-241 Specification
ASNZS MTO-245 Specification
ASNZS MTO-260 Specification
ASNZS MTO-275 Specification

Nominal Cross Sectional Area	Thickness of Insulation	Area of Core Screen	Thickness of Pilot Conductor Covering	Thickness of Outer Sheath	Overall Diameter (approx.)	Weight (approx.)
mm2	mm	mm²	mm	mm	mm	kg/km
Type 209 .1 - 1,1 kV
6	1,5	7,2	0,8	3,8	30,4	1290
10	1,5	8,6	0,8	3,8	32,9	1575
16	1,6	9,6	0,8	4,0	36,2	1967
25	1,6	11,3	0,8	4,3	39,7	2555
35	1,6	12,4	0,8	4,6	43,9	3130
50	1,7	14,1	0,8	5,0	47,9	3866
70	1,8	16,5	0,8	5,4	53,5	5041
95	2,0	18,2	0,8	6,0	58,9	6056
120	2,1	20,3	0,8	6,4	64,9	7419
150	2,3	22,3	0,8	6,9	71,2	8975
185	2,5	30,2	0,8	7,4	77,9	10935
240	2,8	33,6	0,8	8,2	86,8	13671
300	3,0	50,1	0,8	8,8	95,7	17175
Type 209 .3 - 3,3 kV
16	3,0	13,1	0,8	5,3	46,4	3030
25	3,0	14,8	0,8	5,6	50,7	3670
35	3,0	15,8	0,8	5,9	53,3	4290
50	3,0	17,2	0,8	6,3	57,8	5060
70	3,0	18,6	0,8	6,6	62,7	6270
95	3,0	20,3	0,8	7,1	66,9	7210
120	3,0	27,2	0,8	7,4	72,6	8810
150	3,0	39,6	0,8	7,8	78,7	10780
185	3,0	42,2	0,8	8,2	83,9	12420
240	3,0	46,6	0,8	8,8	91,3	15050
300	3,0	63,2	0,8	9,4	98,9	18500
Type 209 .6 - 6,6 kV
16	5,0	17,2	0,8	6,4	57,2	4367
25	5,0	18,6	0,8	6,7	61,7	5130
35	5,0	18,6	0,8	7,0	64,9	5836
50	5,0	21,3	0,8	7,3	69,1	6691
70	5,0	23,4	0,8	7,7	73,7	7997
95	5,0	29,2	0,8	8,1	78,3	9359
120	5,0	31,7	0,8	8,5	83,7	10930
150	5,0	45,7	0,8	8,9	89,5	13120
185	5,0	48,4	0,8	9,3	94,7	14850
240	5,0	52,8	0,8	9,9	101,4	17540
300	5,0	71,5	0,8	10,4	109,8	21290
Type 209 .11- 11,11kV
25	7,6	23,7	0,8	8,1	75,8	7510
35	7,6	30,2	0,8	8,4	79,9	8610
50	7,6	31,7	0,8	8,7	84,2	9660
70	7,6	34,1	0,8	9,1	89,3	10980
95	7,6	47,5	0,8	9,6	93,8	12695
120	7,6	51,0	0,8	9,9	98,7	14380
150	7,6	53,7	0,8	10,3	103,9	16175
185	7,6	57,2	0,8	10,7	108,8	18330

Nominal Cross Sectional Area	Thickness of Insulation	Area of Core Screen	Thickness of Pilot Conductor Covering	Thickness of Outer Sheath	Overall Diameter (approx.)	Weight (approx.)
mm2	mm	mm²	mm	mm	mm	kg/km
1,5	1,4	5,2	0,8	3,0	23,9	840
2,5	1,5	5,8	0,8	3,0	25,5	925

Nominal Cross Sectional Area	Thickness of Insulation	Area of Core Screen	Thickness of Pilot Conductor Covering	Thickness of Outer Sheath	Overall Diameter (approx.)	Weight (approx.)
mm2	mm	mm²	mm	mm	mm	kg/km
Type 240 .1 - 1,1 kV
6	1,5	7,2	1,0	3,8	30,6	1330
10	1,5	8,6	1,0	3,8	33,1	1620
16	1,6	9,6	1,0	4,0	35,9	2040
25	1,6	11,3	1,2	4,3	39,7	2690
35	1,6	12,4	1,2	4,6	43,7	3270
50	1,7	14,1	1,2	5,0	48,1	4060
70	1,8	16,5	1,2	5,4	54,5	5380
95	2,0	18,2	1,2	6,0	58,9	6410
120	2,1	20,3	1,4	6,4	65,4	7790
150	2,3	22,3	1,4	6,9	70,9	9470
185	2,5	30,2	1,4	7,4	78,1	11590
240	2,8	33,6	1,6	8,2	86,8	14500
300	3,0	50,1	1,6	8,8	95,7	18195
Type 240 .3 - 3,3 kV
16	3,0	13,1	1,4	5,3	46,8	3075
25	3,0	14,8	1,4	5,6	50,6	3800
35	3,0	15,8	1,4	5,9	53,9	4480
50	3,0	17,2	1,4	6,3	58,1	5260
70	3,0	18,6	1,4	6,6	62,9	6590
95	3,0	20,3	1,4	7,1	66,6	7530
120	3,0	27,2	1,6	7,4	72,4	9140
150	3,0	39,6	1,6	7,8	78,9	11210
185	3,0	42,2	1,8	8,2	83,8	12890
240	3,0	46,6	1,8	8,8	90,7	15470
300	3,0	63,2	1,8	9,4	99,4	19310
Type 240 .6 - 6,6 kV
16	5,0	17,2	1,4	6,4	57,9	4460
25	5,0	18,6	1,4	6,7	61,6	5280
35	5,0	18,6	1,6	7,0	64,8	5960
50	5,0	21,3	1,6	7,3	68,9	6870
70	5,0	23,4	1,6	7,7	74,4	8340
95	5,0	29,2	1,6	8,1	78,5	9560
120	5,0	31,7	1,8	8,5	83,9	11210
150	5,0	45,7	1,8	8,9	90,8	13390
185	5,0	48,4	1,8	9,3	95,3	15210
240	5,0	52,8	1,8	9,9	101,9	18190
300	5,0	71,5	1,8	10,4	110,3	21980
Type 240 .11 - 11,11 kV
25	7,6	23,7	2,0	8,1	76,1	7550
35	7,6	30,2	2,0	8,4	79,9	8660
50	7,6	31,7	2,0	8,7	84,1	9650
70	7,6	34,1	2,0	9,1	88,9	11280
95	7,6	47,5	2,0	9,6	94,3	13100
120	7,6	51,0	2,2	9,9	99,6	14795
150	7,6	53,7	2,2	10,3	104,5	16600
185	7,6	57,2	2,2	10,7	110,8	18870

Nominal Cross Sectional Area	Thickness of Insulation	Area of Core Screen	Thickness of Pilot Conductor Covering	Thickness of Outer Sheath	Overall Diameter (approx.)	Weight (approx.)
mm2	mm	mm²	mm	mm	mm	kg/km
Type 241 .1 - 1,1 kV
6	1,5	1,0	0,8	3,8	28,3	1040
10	1,5	1,0	0,8	3,8	30,9	1290
16	1,6	1,0	0,8	3,9	34,3	1660
25	1,6	1,0	0,8	4,2	37,8	2210
35	1,6	1,0	0,8	4,4	41,8	2580
50	1,7	1,0	0,8	4,9	46,2	3340
70	1,8	1,0	0,8	5,3	52,8	4870
95	2,0	1,0	0,8	5,8	57,3	6080
120	2,1	1,2	0,8	6,3	63,2	7190
150	2,3	1,2	0,8	6,7	68,9	8750
185	2,5	1,4	0,8	7,3	75,6	10330
240	2,8	1,4	0,8	8,0	83,8	13090
300	3,0	1,4	0,8	8,7	91,9	16110
Type 241 .3 - 3,3 kV
16	3,0	1,0	0,8	5,0	44,2	2470
25	3,0	1,0	0,8	5,3	47,4	3180
35	3,0	1,0	0,8	5,6	51,4	3770
50	3,0	1,2	0,8	6,0	55,6	4550
70	3,0	1,2	0,8	6,4	60,6	5790
95	3,0	1,2	0,8	6,8	63,4	6810
120	3,0	1,2	0,8	7,2	69,5	8160
150	3,0	1,2	0,8	7,6	73,1	9610
185	3,0	1,4	0,8	8,0	79,7	11390
240	3,0	1,4	0,8	8,6	86,5	13920
300	3,0	1,4	0,8	9,1	93,4	16710
Type 241 .6 - 6,6 kV
16	5,0	1,4	0,8	6,1	54,9	3660
25	5,0	1,4	0,8	6,4	58,8	4430
35	5,0	1,4	0,8	6,7	62,2	5110
50	5,0	1,4	0,8	7,1	66,2	5950
70	5,0	1,4	0,8	7,4	71,2	7310
95	5,0	1,4	0,8	7,9	74,8	8400
120	5,0	1,4	0,8	8,3	80,2	9960
150	5,0	1,4	0,8	8,6	84,6	11480
185	5,0	1,4	0,8	9,0	90,0	13180
240	5,0	1,4	0,8	9,6	96,8	15840
300	5,0	1,4	0,8	10,2	103,6	19110
Type 241 .11 - 11,11 kV
25	7,6	1,8	0,8	7,8	73,7	6460
35	7,6	1,8	0,8	8,1	77,0	7270
50	7,6	1,8	0,8	8,5	81,1	8280
70	7,6	1,8	0,8	8,9	86,3	9770
95	7,6	1,8	0,8	9,3	89,7	10940
120	7,6	1,8	0,8	9,7	94,9	12660
150	7,6	1,8	0,8	10,0	99,5	14330
185	7,6	1,8	0,8	10,4	104,4	16210

Nominal Cross Sectional Area	Thickness of Insulation	Area of Core Screen	Thickness of Pilot Conductor Covering	Thickness of Outer Sheath	Overall Diameter (approx.)	Weight (approx.)
mm2	mm	mm²	mm	mm	mm	kg/km
Type 245 .1 - 1,1 kV
16	2,0	1,8	0,8	4,1	42,8	2370
25	1,6	1,8	0,8	4,2	44,0	2720
35	1,6	1,4	0,8	4,4	45,8	3180
50	1,7	1,0	0,8	4,8	48,7	3940
70	1,8	1,0	0,8	5,1	54,2	5070
95	2,0	1,0	0,8	5,6	60,7	6320
120	2,1	1,2	0,8	6,0	65,9	7680
150	2,3	1,2	0,8	6,3	70,8	9190
Type 245 .3 - 3,3 kV
25	3,0	1,5	0,8	5,2	51,4	3395
35	3,0	1,0	0,8	5,4	54,9	3990
50	3,0	1,0	0,8	5,7	57,3	4925
70	3,0	1,2	0,8	6,0	61,9	5960
95	3,0	1,2	0,8	6,4	66,8	7430
120	3,0	1,2	0,8	6,7	71,9	8760
150	3,0	1,2	0,8	7,0	75,6	10290

Nominal Cross Sectional Area	Thickness of Insulation	Area of Core Screen	Thickness of Pilot Conductor Covering	Thickness of Inner Sheath	Thickness of Outer Sheath	Overall Diameter (approx.)	Weight (approx.)
mm2	mm	mm	mm	mm	mm	mm	kg/km
Type 260 .1 - 1,1 kV
6	1,5	7,2	1,0	2,0	3,8	37,1	2360
10	1,5	8,6	1,0	2,0	3,8	39,9	2660
16	1,6	9,6	1,0	2,5	4,0	46,7	4140
25	1,6	11,3	1,2	2,5	4,3	50,9	4960
35	1,6	12,4	1,2	2,5	4,6	54,3	5780
50	1,7	14,1	1,2	2,5	5,0	58,7	6810
70	1,8	16,5	1,2	2,5	5,4	65,1	8390
95	2,0	18,2	1,2	3,5	6,0	71,8	10060
120	2,1	20,3	1,4	3,5	6,4	77,6	11790
150	2,3	22,3	1,4	3,5	6,9	83,7	13790
185	2,5	30,2	1,4	3,5	7,4	90,5	16180
240	2,8	33,6	1,6	4,5	8,2	104,0	21560
300	3,0	50,1	1,6	4,5	8,8	113,3	25940
Type 260 .3 - 3,3 kV
16	3,0	13,1	1,4	2,5	5,3	57,4	5670
25	3,0	14,8	1,4	2,5	5,6	60,9	6630
35	3,0	15,8	1,4	3,5	5,9	66,8	7820
50	3,0	17,2	1,4	3,5	6,3	70,9	8890
70	3,0	18,6	1,4	3,5	6,6	75,6	10470
95	3,0	20,3	1,4	3,5	7,1	79,5	11590
120	3,0	27,2	1,6	3,5	7,4	85,0	13540
150	3,0	39,6	1,6	4,5	7,8	95,6	17830
185	3,0	42,2	1,8	4,5	8,2	101,2	19990
240	3,0	46,6	1,8	4,5	8,8	107,9	23100
300	3,0	63,2	1,8	4,5	9,4	116,2	27190
Type 260 .6 - 6,6 kV
16	5,0	17,2	1,4	3,5	6,4	70,6	7980
25	5,0	18,6	1,4	3,5	6,7	74,4	8980
35	5,0	18,6	1,6	3,5	7,0	77,7	9940
50	5,0	21,3	1,6	3,5	7,3	81,8	11060
70	5,0	23,4	1,6	4,5	7,7	91,3	14590
95	5,0	29,2	1,6	4,5	8,1	94,9	16160
120	5,0	31,7	1,8	4,5	8,5	101,2	18100
150	5,0	45,7	1,8	4,5	8,9	106,9	20870
185	5,0	48,4	1,8	4,5	9,3	112,4	23110
240	5,0	52,8	1,8	4,5	9,9	118,9	26390
300	5,0	71,5	1,8	4,5	10,4	127,3	30710
Type 260 .11 - 11,11 kV
25	7,6	23,7	2,0	4,5	8,1	92,9	13860
35	7,6	30,2	2,0	4,5	8,4	97,3	15330
50	7,6	31,7	2,0	4,5	8,7	100,9	16690
70	7,6	34,1	2,0	4,5	9,1	106,3	18760
95	7,6	47,5	2,0	4,5	9,6	110,9	20880
120	7,6	51,0	2,2	4,5	9,9	116,2	22970
150	7,6	53,7	2,2	4,5	10,3	120,8	25160
185	7,6	57,2	2,2	4,5	10,7	126,6	27580

Nominal Cross Sectional Area	Thickness of Insulation	Area of Core Screen	Thickness of Pilot Conductor Covering	Thickness of Outer Sheath	Overall Diameter (approx.)	Weight (approx.)
mm2	mm	mm²	mm	mm	mm	kg/km
16	1,6	1,0	0,8	3,8	30,8	1465
25	1,6	1,0	0,8	4,0	34,3	2070
35	1,6	1,0	0,8	4,3	38,4	2745
50	1,7	1,0	0,8	4,7	42,1	3360

Why Huadong Cable

Our vision is to become an internationally renowned cable brand. Customer satisfaction, employee advancement, and corporate growth are our service tenets. High standards, globalization, and building an international brand are our business philosophy.

About HuaDong

Henan Huadong Cable Co., Ltd., established in 1999, is a state-level high-tech enterprise integrating scientific research, production, and trade. Deeply engaged in the Belt and Road Initiative, Huadong Cable exports its products to over 130 countries worldwide, covering regions including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.

HuaDong Technology

HuaDong Cable focuses on technological research and development, employing 60 professionals with senior technical titles and holding over 100 invention and utility model patents. The company has assembled a team of experienced technical engineers to ensure the quality of its cable products.

Main Products

Our main products: Marine cables, power cables, overhead cables, fire-resistant cables, low-smoke zero-halogen cables, rubber cables, high-temperature resistant cables, instrumentation and control cables, solar cables, and other products.
