- CONSTRUCTION
- Conductor: Stranded copper conductor
- Insulation: PVC
- Individual Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
- Binding: Polyester tape
- Outer Sheath: TRATOS OUTER SHEATH®, better than PVC sheath
- Standard colour: black
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE IS + YEAR + SIZE + Metre Mark
- Core Identification: white, black and numbered
ASNZS MTO-IS Cable

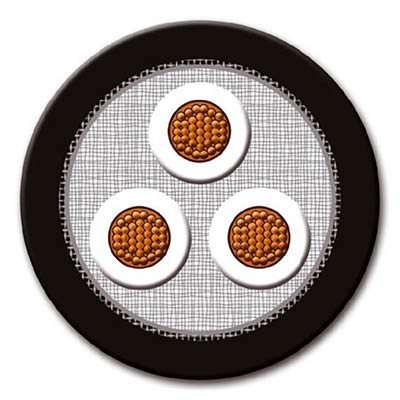

ASNZS MTO-CS Cable
- CONSTRUCTION
- Conductor: Stranded copper conductor
- Insulation: PVC
- Bedding: Polyester tape
- Collective Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
- Outer Sheath: TRATOS OUTER SHEATH®, better than PVC sheath
- Standard colour: black
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE CS + YEAR + SIZE + Metre Mark
- Core Identification: white, black and numbered

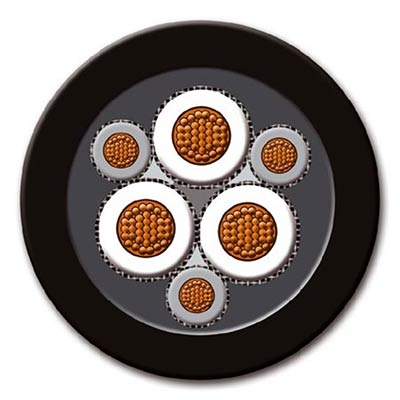

ASNZS MTO-2S-IS Cable
- CONSTRUCTION
- Conductor: Stranded copper conductor
- Insulation: EPR
- Filling: Elastomer centre filler
- Pilot/Control Cores: EPR covered and composite screened flexible stranded tinned copper conductor
- Individual Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
- Outer Sheath: TRATOS OUTER SHEATH®, better than heavy duty CPE sheath
- Standard colour: black
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE 2S-IS + YEAR + SIZE + Metre Mark
- Core Identification: white, black and numbered

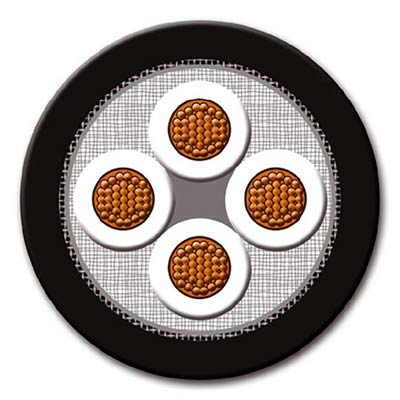

ASNZS MTO-2S-CS Cable
- CONSTRUCTION
- Conductor: Stranded tinned annealed copper conductor
- Insulation: EPR
- Filling: Elastomer centre filler
- Bedding: Polyester tape
- Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
- Outer Sheath: TRATOS OUTER SHEATH®, better than heavy duty CPE sheath
- Standard colour: black
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE 2S-CS + YEAR + SIZE + Metre Mark
- Core Identification: white, black and numbered

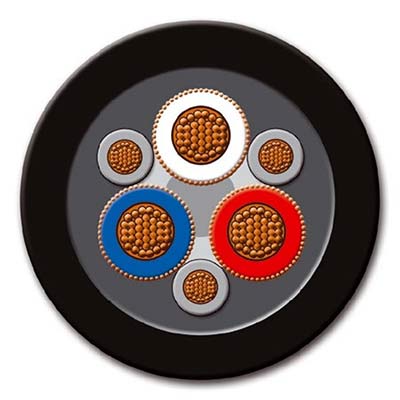

ASNZS MTO-A&B Cable
- CONSTRUCTION
- Conductor: Stranded tinned annealed copper conductor
- Insulation: EPR
- Filling: Elastomer centre filler
- Optional Pilot Core (Type A only): CPE composite insulated and covered pilot conductor
- Screen (earth conductor): Copper wire
- Outer Sheath: TRATOS OUTER SHEATH®, better than heavy duty CPE sheath
- Standard colour: black
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE A&B + YEAR + SIZE + Metre Mark
- Core Identification: blue, red and white

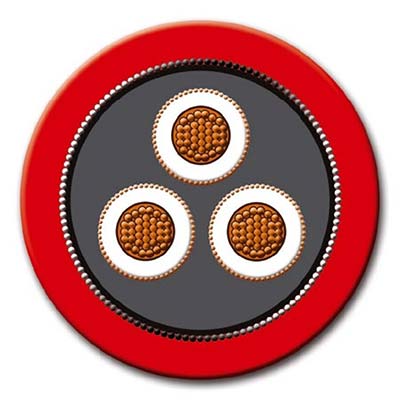

ASNZS MTO-XLPE Cable
- CONSTRUCTION
- Conductor: Stranded plain copper conductor
- Insulation: XLPE
- Individual Screen (earth conductor): Copper wire
- Inner Sheath: PVC sheath
- Armour: Galvanized steel wire armour
- Outer Sheath: TRATOS OUTER SHEATH®, better than PVC sheath to AS/NZS 1429 .1
- Standard colour: Red
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE XLPE + YEAR + SIZE + Metre Mark
- Core Identification: black and numbered

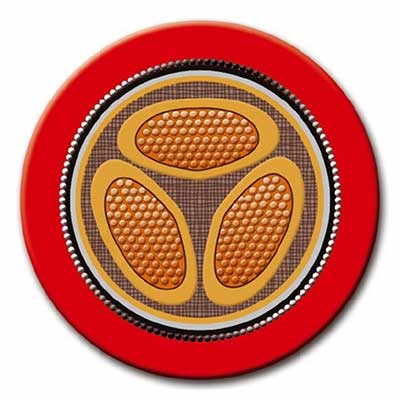

ASNZS MTO-PAPER Cable
- CONSTRUCTION
- Conductor: Sector shaped stranded copper conductor
- Insulation: Paper tape
- Filling: Jute fillers
- Insulation: Paper tape belt insulation
- Inner Sheath: Lead sheath
- Bedding: PVC sheath
- Armour: Galvanized steel wire armour
- Outer Sheath: TRATOS OUTER SHEATH®, better than PVC sheath to AS/NZS 1026
- Standard colour: Red
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE PAPER + YEAR + SIZE + Metre Mark
- Core Identification: black and numbered
- ASNZS MTO-IS Specification
- ASNZS MTO-CS Specification
- ASNZS MTO-2S-IS Specification
- ASNZS MTO-2S-CS Specification
- ASNZS MTO-A&B Specification
- ASNZS MTO-XLPE Specification
- ASNZS MTO-PAPER Specification
| No of Cores × Cross Sectional Area | Thickness of Insulation | Core Screen | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) | |
|---|---|---|---|---|---|---|
| Strand Size | Area Screen | |||||
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| 3×1,5 | 0,8 | 0,20 | 3,5 | 0,8 | 10,1 | 160 |
| 4×1,5 | 0,8 | 0,20 | 4,6 | 0,8 | 11,1 | 210 |
| 3×10 | 1,0 | 0,20 | 6,8 | 1,0 | 18,6 | 590 |
| 4×10 | 1,0 | 0,20 | 9,0 | 1,0 | 20,5 | 750 |
| 3×16 | 1,0 | 0,20 | 7,9 | 1,3 | 21,6 | 840 |
| 4×16 | 1,0 | 0,20 | 10,6 | 1,3 | 23,7 | 1100 |
| No of Cores × Cross Sectional Area | Thickness of Insulation | Core Screen | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) | |
|---|---|---|---|---|---|---|
| Strand Size | Area Screen | |||||
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| 2×1,5 | 0,8 | 0,20 | 2,3 | 0,8 | 9,2 | 120 |
| 3×1,5 | 0,8 | 0,20 | 2,5 | 0,8 | 9,7 | 150 |
| 4×1,5 | 0,8 | 0,20 | 2,6 | 0,8 | 10,5 | 180 |
| 6×1,5 | 0,8 | 0,20 | 3,4 | 0,8 | 12,6 | 250 |
| 16×1,5 | 0,8 | 0,20 | 5,1 | 1,0 | 18,7 | 550 |
| 30×1,5 | 0,8 | 0,25 | 8,8 | 1,3 | 24,6 | 960 |
| No of Cores × Cross Sectional Area | Thickness of Insulation | Core Screen | Pilot Conductor | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) | ||
|---|---|---|---|---|---|---|---|---|
| Strand Size | Area Screen | No of Pilots | Thickness of Covering | |||||
| mm2 | mm | mm² | mm | mm | mm | kg/km | ||
| Type 2S 1,1/1kV Individually Screened | ||||||||
| 3×10 | 1,2 | 0,2 | 7,9 | 3 | – | 1,8 | 22,1 | 690 |
| 4×10 | 1,2 | 0,2 | 7,9 | 4 | – | 1,8 | 23,0 | 930 |
| 2×16 | 1,2 | 0,2 | 9,0 | 2 | – | 1,8 | 22,0 | 810 |
| 3×16 | 1,2 | 0,2 | 9,0 | 3 | – | 1,8 | 23,4 | 1000 |
| 4×16 | 1,2 | 0,2 | 9,0 | 4 | – | 1,8 | 26,8 | 1350 |
| 3×10 | 1,2 | 0,2 | 7,9 | 3 | 1,0 | 1,8 | 22,5 | 870 |
| 2×16 | 1,2 | 0,2 | 9,0 | 2 | 1,0 | 1,8 | 22,7 | 880 |
| 3×16 | 1,2 | 0,2 | 9,0 | 3 | 1,0 | 1,8 | 27,7 | 1300 |
| 3×25 | 1,4 | 0,2 | 11,3 | 3 | 1,0 | 1,8 | 29,2 | 1650 |
| 3×35 | 1,4 | 0,2 | 12,4 | 3 | 1,0 | 1,8 | 31,6 | 2000 |
| 3×50 | 1,6 | 0,25 | 17,5 | 3 | 1,0 | 1,9 | 36,1 | 2600 |
| Type 2S 1,1/1kV Individually and Collectively Screened | ||||||||
| 30×1,5 | 1,0 | 0,3 | 14,0 | – | – | 1,9 | 32,6 | 1700 |
| Type 2S 3,3/3,3Kv Individually Screened | ||||||||
| 3×10 | 3,0 | 0,2 | 11,3 | 3 | 1,0 | 1,8 | 28,9 | 1300 |
| 3×16 | 3,0 | 0,2 | 12,4 | 3 | 1,0 | 1,8 | 31,3 | 1600 |
| 3×25 | 3,0 | 0,2 | 13,6 | 3 | 1,0 | 1,9 | 34,8 | 2100 |
| 3×35 | 3,0 | 0,2 | 15,3 | 3 | 1,0 | 2,0 | 37,8 | 2500 |
| 3×50 | 3,0 | 0,2 | 17,0 | 3 | 1,0 | 2,1 | 41,3 | 3050 |
| 3×70 | 3,0 | 0,3 | 30,5 | 3 | 1,0 | 2,2 | 46,8 | 4150 |
| 3×95 | 3,0 | 0,3 | 30,5 | 3 | 1,0 | 2,3 | 49,6 | 4900 |
| 3×120 | 3,0 | 0,4 | 47,5 | 3 | 1,0 | 2,5 | 55,0 | 6200 |
| No of Cores × Cross Sectional Area | Thickness of Insulation | Core Screen | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) | |
|---|---|---|---|---|---|---|
| Strand Size | Area Screen | |||||
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| 2×1,5 | 1,0 | 0,20 | 5,3 | 1,8 | 14,7 | 170 |
| 4×1,5 | 1,0 | 0,20 | 12,1 | 1,8 | 19,9 | 260 |
| 6×1,5 | 1,0 | 0,20 | 22,6 | 1,8 | 25,7 | 350 |
| 16×1,5 | 1,0 | 0,25 | 113,1 | 1,8 | 47,1 | 710 |
| 20×1,5 | 1,0 | 0,25 | 159,0 | 1,8 | 53,2 | 820 |
| Cross Sectional Area | Thickness of Insulation | Area of Core Screen | Thickness of Pilot Conductor Covering | Thickness of Outer Sheath | Overall Diameter (approx,) | Weight (approx,) |
|---|---|---|---|---|---|---|
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| 16 | 1,4 | 6,0 | 1,6 | 2,5 | 24,6 | 1200 |
| 25 | 1,4 | 7,2 | 1,8 | 2,5 | 28,0 | 1700 |
| 35 | 1,5 | 7,9 | 1,8 | 2,5 | 30,4 | 2050 |
| 50 | 1,7 | 9,0 | 2,0 | 3,0 | 34,9 | 2700 |
| 70 | 1,8 | 13,2 | 2,0 | 3,3 | 40,2 | 3700 |
| 95 | 2,0 | 15,1 | 2,0 | 3,8 | 46,1 | 4900 |
| 120 | 2,2 | 22,9 | 2,0 | 3,8 | 51,1 | 6150 |
| 150 | 2,3 | 24,7 | 2,0 | 4,4 | 56,0 | 7400 |
| 185 | 2,5 | 27,5 | 2,0 | 5,1 | 62,3 | 9150 |
| 240 | 2,7 | 64,4 | 2,0 | 5,7 | 72,9 | 12900 |
| Cross Sectional Area | Nominal Conductor Area | Thickness of Insulation | Area of Core Screen | Armour Wire Diameter | Thickness of Outer Sheath | Overall Diameter (approx,) | Weight (approx,) |
|---|---|---|---|---|---|---|---|
| mm2 | mm | mm | mm² | mm | mm | mm | kg/km |
| 6,35/11kV | |||||||
| 16 | 4,8 | 3,4 | 5,7 | 2,00 | 2,4 | 46,6 | 3300 |
| 25 | 5,8 | 3,4 | 5,7 | 2,50 | 2,5 | 50,1 | 4150 |
| 35 | 6,8 | 3,4 | 6,2 | 2,50 | 2,6 | 52,8 | 4750 |
| 50 | 8,0 | 3,4 | 8,5 | 2,50 | 2,7 | 55,7 | 5400 |
| 70 | 9,6 | 3,4 | 11,9 | 2,50 | 2,8 | 59,6 | 6450 |
| 95 | 11,5 | 3,4 | 16,5 | 2,50 | 2,9 | 63,9 | 7750 |
| 120 | 13,1 | 3,4 | 20,4 | 2,50 | 3,1 | 67,9 | 9050 |
| 150 | 14,5 | 3,4 | 25,0 | 2,50 | 3,2 | 71,5 | 10300 |
| 185 | 16,1 | 3,4 | 31,5 | 3,15 | 3,3 | 78,6 | 12800 |
| 240 | 18,5 | 3,4 | 41,5 | 3,15 | 3,5 | 84,7 | 15500 |
| 300 | 20,7 | 3,4 | 53,0 | 3,15 | 3,7 | 90,4 | 18200 |
| 400 | 23,6 | 3,4 | 67,3 | 3,15 | 4,0 | 97,9 | 22300 |
| 12,7/22kV | |||||||
| 35 | 6,8 | 5,5 | 7,9 | 2,5 | 2,9 | 63,2 | 6000 |
| 50 | 8,0 | 5,5 | 8,5 | 2,5 | 3,0 | 66,0 | 6650 |
| 70 | 9,6 | 5,5 | 11,9 | 2,5 | 3,1 | 69,9 | 7750 |
| 95 | 11,5 | 5,5 | 16,5 | 2,5 | 3,3 | 74,4 | 9200 |
| 120 | 13,1 | 5,5 | 20,4 | 3,15 | 3,4 | 79,5 | 11400 |
| 150 | 14,5 | 5,5 | 25,0 | 3,15 | 3,5 | 83,1 | 12800 |
| 185 | 16,1 | 5,5 | 31,5 | 3,15 | 3,7 | 89,1 | 14500 |
| 240 | 18,5 | 5,5 | 41,5 | 3,15 | 3,9 | 95,0 | 17200 |
| 300 | 20,7 | 5,5 | 53,0 | 3,15 | 4,1 | 101,1 | 20100 |
| 400 | 23,6 | 5,5 | 67,3 | 3,15 | 4,3 | 108,2 | 24200 |
| Nominal Cross Sectional Area | Minimum Insulation Thickness | Nominal Thickness of Lead Sheath | Armour Wire Diameter | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) | |
|---|---|---|---|---|---|---|---|
| Between Conductors | Between Conductors & Lead Sheath | ||||||
| mm2 | mm | mm | mm2 | mm | mm | mm | kg/km |
| 25 | 5,6 | 5,4 | 1,8 | 2,5 | 2,4 | 47,9 | 6300 |
| 35 | 5,6 | 5,4 | 1,8 | 2,5 | 2,5 | 50,3 | 6950 |
| 50 | 5,6 | 5,4 | 1,8 | 2,5 | 2,5 | 50,1 | 7250 |
| 70 | 5,6 | 5,4 | 1,9 | 2,5 | 2,6 | 53,5 | 8550 |
| 95 | 5,6 | 5,4 | 2,0 | 2,5 | 2,6 | 57,2 | 10000 |
| 120 | 5,6 | 5,4 | 2,0 | 2,5 | 2,7 | 60,1 | 11200 |
| 150 | 5,6 | 5,4 | 2,1 | 2,5 | 2,8 | 63,0 | 12600 |
| 185 | 5,6 | 5,4 | 2,3 | 3,15 | 2,9 | 68,0 | 15400 |
| 240 | 5,6 | 5,4 | 2,4 | 3,15 | 3,0 | 73,1 | 18200 |
| 300 | 5,6 | 5,4 | 2,6 | 3,15 | 3,2 | 77,9 | 21200 |
| 400 | 5,6 | 5,4 | 2,7 | 3,15 | 3,4 | 83,5 | 25000 |
