- CONSTRUCTION
- Conductor: Flexible stranded tinned annealed copper conductor
- Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3 .3/3 .3kV and above).
- Insulation: EPR R-EP-90.
- Insulation Screen: Semiconductive elastomer
- Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
- Cradle Separator: Semiconductive PCP
- Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor
- Outer Sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (HD-85-PCP) . Heavy duty CPE/CSP sheath can be offered upon request
- Standard colour: black
- Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 409 .6 + YEAR + SIZE + Metre Mark
- Core Identification- 1.1/1.1 kV: Power core identification by coloured insulation (Red, White, Blue) . Central Pilot Core identification coloured insulation (Grey) .
- Core Identification – 3.3/3.3 kV and higher voltages: Power core identification by coloured tracers in the composite screen (Red, White, Blue) . Central Pilot Core identification coloured insulation (Grey) .
ASNZS MTO-409 Cable

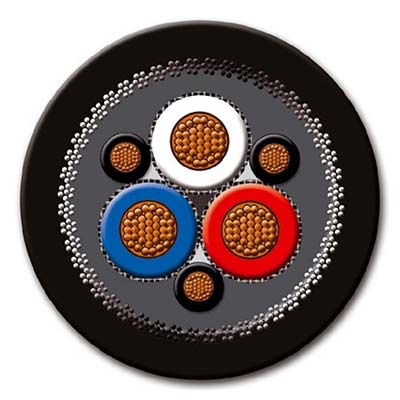

ASNZS MTO-412 Cable
- CONSTRUCTION
- Conductor: Flexible stranded tinned annealed copper conductor
- Insulation: EPR R-EP-90
- Insulation Screen: Semiconductive elastomer
- Filler: Elastomer centre filler
- Interstitial Earth Conductor: EPR covered flexible stranded tinned copper conductor
- Inner Sheath: PCP sheath . CPE/CSP sheath can be offered upon request
- Pliable Armour: Galvanized low carbon (mild) steel strands
- Outer Sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (HD-85-PCP) . Heavy duty CPE/CSP sheath can be offered upon request
- Standard colour: black
- Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 412 .1 + YEAR + SIZE + Metre Mark
- Core Identification: Power core identification by coloured insulation (Red, White, Blue) . Interstitial Earth Cores coloured covering (Black) .

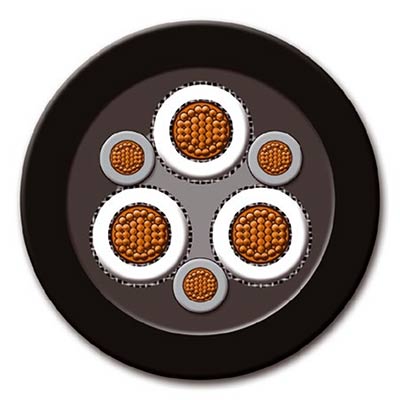

ASNZS MTO-440 Cable
- CONSTRUCTION
- Conductor: Flexible stranded tinned annealed copper conductor
- Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3 .3/3 .3kV and above) .
- Insulation: EPR R-EP-90
- Insulation Screen: Semiconductive elastomer
- Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn
- Cradle Separator: Semiconductive PCP
- Interstitial Pilot: EPR covered flexible stranded tinned copper conductor
- Outer Sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (HD-85-PCP) . Heavy duty CPE/CSP sheath can be offered upon request
- Standard colour: black
- Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 440 .11 + YEAR + SIZE + Metre Mark
- Core Identification – 1.1/1.1 kV: Power core identification by coloured insulation . (Red, White, Blue) .
- Interstitial Pilot Core identification coloured insulation (Grey) .
- Core Identification – 3.3/3.3 kV and higher voltages: Power core identification by coloured tracers in the composite screen (Red, White, Blue) . Interstitial Pilot Core identification coloured insulation (Grey) .

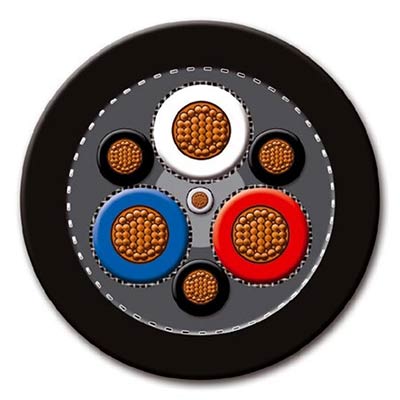

ASNZS MTO-441 Class 2 Cable
- CONSTRUCTION
- Conductor: Flexible stranded tinned annealed copper conductor
- Insulation: EPR R-EP-90
- Insulation Screen: Semiconductive elastomer
- Cradle Separator: Semiconductive PCP
- Overall Core Screen: Semiconductive PCP filling and covering
- Interstitial Earth Conductor: Semiconductive PCP covered flexible stranded tinned copper conductor
- Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor
- Textile Reinforcement: Open-weave braid reinforcement .
- Standard colour: black
- Outer Sheath: TRATOS OUTER SHEATH®, better than heavy duty PCP sheath (XHD-85-PCP) . Heavy duty CPE/CSP sheath can be offered upon request
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE 441 .1 + YEAR + SIZE + Metre Mark
- Core Identification: Power core identification by coloured insulation (Red, White, Blue) . Interstitial Pilot Core identification coloured insulation (Grey) .

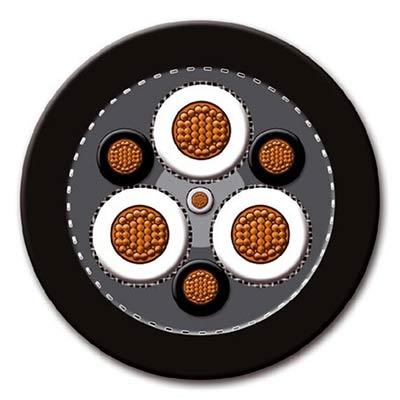

ASNZS MTO-441 Class 1 Cable
- CONSTRUCTION
- Conductor: Flexible stranded tinned annealed copper conductor .
- Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3 .3/3 .3kV and above) .
- Insulation: EPR XR-EP-90
- Insulation Screen: Semiconductive elastomer .
- Cradle Separator: Semiconductive PCP .
- Overall Core Screen: Semiconductive PCP filling and covering .
- Interstitial Earth Conductor: Semiconductive PCP covered flexible stranded tinned copper conductor .
- Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor
- Textile Reinforcement: Open-weave braid reinforcement
- Outer Sheath: TRATOS OUTER SHEATH®, better than extra- heavy duty PCP sheath (XHD-85-PCP) . Extra-heavy duty CPE/ CSP sheath can be offered upon request
- Standard colour: black
- Marking: TRATOS + R-EP-90/HD-85-PCP + TYPE 441 .3 + YEAR + SIZE + Metre Mark
- Core Identification: Power core identification printed core numbers on the black semiconductive insulation screen . Interstitial Earth Cores coloured covering (Black). Central Pilot Core identification coloured insulation (Grey) .
[/content]

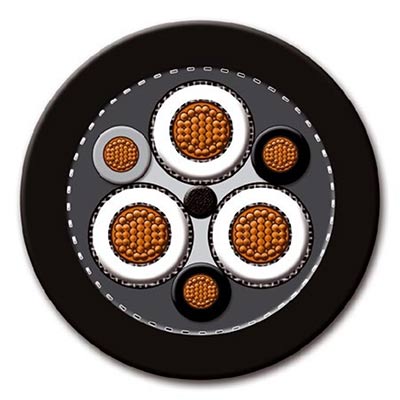

ASNZS MTO-450 Cable
- CONSTRUCTION
- Conductor: Flexible stranded tinned annealed copper conductor
- Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3 .3/3 .3kV and above)
- Insulation: EPR XR-EP-90
- Insulation Screen: Semiconductive elastomer
- Composite Screen: Tinned annealed copper braiding interwove with polyester yarn, covered with semiconductive tape
- Filler: Elastomer centre filler
- Interstitial Earth Conductor×2: CSP covered flexible stranded tinned copper conductor
- Interstitial Pilot: EPR covered flexible stranded tinned copper conductor
- Textile Reinforcement: Open-weave braid reinforcement
- Outer Sheath: TRATOS OUTER SHEATH®, better than extra- heavy duty PCP sheath (XHD-85-PCP) . Extra-heavy duty CPE/ CSP sheath can be offered upon request
- Standard colour: black
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE 450 .11 + YEAR + SIZE + Metre Mark
- Core Identification: Power core identification by coloured tracers in the composite screen (Red, White, Blue) . Interstitial Earth Cores coloured covering (Black) . Interstitial Pilot Core identification coloured insulation (Grey) .

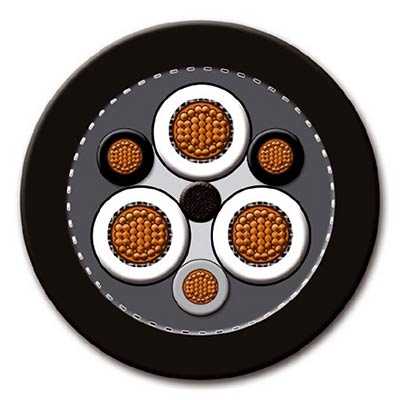

ASNZS MTO-455 Cable
- CONSTRUCTION
- Conductor: Flexible stranded tinned annealed copper conductor
- Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3 .3/3 .3kV and above)
- Insulation: EPR XR-EP-90
- Insulation Screen: Semiconductive elastomer
- Filler: Elastomer centre filler
- Interstitial Earth Conductor: CSP covered flexible stranded tinned copper conductor
- Interstitial Pilot: EPR covered flexible stranded tinned copper conductor
- Textile Reinforcement: Open-weave braid reinforcement
- Outer Sheath: TRATOS OUTER SHEATH®, better than extra- heavy duty PCP sheath (XHD-85-PCP) . Extra-heavy duty CPE/ CSP sheath can be offered upon request
- Standard colour: black
- Marking: TRATOS + XR-EP-90/XHD-85-PCP + TYPE 455 .6 + YEAR + SIZE + Metre Mark
- Core Identification: Power core identification printed core numbers on the black semiconductive insulation screen . Interstitial Earth Cores coloured covering (Black) . Interstitial Pilot Core identification coloured insulation (Grey) .
- ASNZS MTO-409 Specification
- ASNZS MTO-412 Specification
- ASNZS MTO-440 Specification
- ASNZS MTO-441 Class 2 Specification
- ASNZS MTO-441 Class 1 Specification
- ASNZS MTO-450 Specification
- ASNZS MTO-455 Specification
| Nominal Cross Sectional Area | Thickness of Insulation | Area of Core Screen | Thickness of Pilot Conductor Covering | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) |
|---|---|---|---|---|---|---|
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| Type 409 .1 Class2 - 1,1 kV | ||||||
| 6 | 1,5 | 7,2 | 0,8 | 3,8 | 30,4 | 1295 |
| 10 | 1,5 | 8,6 | 0,8 | 3,8 | 32,9 | 1590 |
| 16 | 1,6 | 9,6 | 0,8 | 4,0 | 36,1 | 1980 |
| 25 | 1,6 | 11,3 | 0,8 | 4,3 | 39,8 | 2570 |
| 35 | 1,6 | 12,4 | 0,8 | 4,6 | 43,6 | 3160 |
| 50 | 1,7 | 14,1 | 0,8 | 5,0 | 47,9 | 3890 |
| 70 | 1,8 | 16,5 | 0,8 | 5,4 | 54,3 | 5070 |
| 95 | 2,0 | 21,8 | 0,8 | 6,0 | 59,5 | 6280 |
| 120 | 2,1 | 24,7 | 0,8 | 6,4 | 65,7 | 7640 |
| 150 | 2,3 | 36,1 | 0,8 | 6,9 | 72,5 | 9630 |
| 185 | 2,5 | 40,5 | 0,8 | 7,4 | 78,9 | 11690 |
| 240 | 2,8 | 57,7 | 0,8 | 8,2 | 89,1 | 14980 |
| 300 | 3,0 | 63,2 | 0,8 | 8,8 | 96,7 | 18100 |
| Type 409 .3 Class2 - 3,3 kV | ||||||
| 16 | 3,0 | 13,1 | 0,8 | 5,3 | 46,6 | 3030 |
| 25 | 3,0 | 14,8 | 0,8 | 5,6 | 50,5 | 3740 |
| 35 | 3,0 | 15,8 | 0,8 | 5,9 | 53,9 | 4360 |
| 50 | 3,0 | 17,2 | 0,8 | 6,3 | 58,0 | 5140 |
| 70 | 3,0 | 18,6 | 0,8 | 6,6 | 62,8 | 6280 |
| 95 | 3,0 | 20,3 | 0,8 | 7,1 | 66,5 | 7290 |
| 120 | 3,0 | 27,2 | 0,8 | 7,4 | 72,8 | 8860 |
| 150 | 3,0 | 39,6 | 0,8 | 7,8 | 79,0 | 10820 |
| 185 | 3,0 | 42,2 | 0,8 | 8,2 | 83,9 | 12580 |
| 240 | 3,0 | 46,6 | 0,8 | 8,8 | 90,7 | 15070 |
| 300 | 3,0 | 63,2 | 0,8 | 9,4 | 98,8 | 18490 |
| Type 409 .6 Class2 - 6,6 kV | ||||||
| 16 | 5,0 | 17,2 | 0,8 | 6,4 | 57,6 | 4430 |
| 25 | 5,0 | 18,6 | 0,8 | 6,7 | 61,5 | 5190 |
| 35 | 5,0 | 18,6 | 0,8 | 7,0 | 64,9 | 5860 |
| 50 | 5,0 | 21,3 | 0,8 | 7,3 | 69,0 | 6720 |
| 70 | 5,0 | 23,4 | 0,8 | 7,7 | 73,9 | 8080 |
| 95 | 5,0 | 29,2 | 0,8 | 8,1 | 78,2 | 9370 |
| 120 | 5,0 | 31,7 | 0,8 | 8,5 | 83,6 | 10960 |
| 150 | 5,0 | 45,7 | 0,8 | 8,9 | 89,8 | 13170 |
| 185 | 5,0 | 48,4 | 0,8 | 9,3 | 94,7 | 14840 |
| 240 | 5,0 | 52,8 | 0,8 | 9,9 | 101,9 | 17530 |
| 300 | 5,0 | 71,5 | 0,8 | 10,4 | 110,3 | 21290 |
| Type 409 .11 Class2 - 11,11 kV | ||||||
| 25 | 7,6 | 23,7 | 0,8 | 8,1 | 75,8 | 7520 |
| 35 | 7,6 | 30,2 | 0,8 | 8,4 | 79,9 | 8630 |
| 50 | 7,6 | 31,7 | 0,8 | 8,7 | 83,8 | 9570 |
| 70 | 7,6 | 34,1 | 0,8 | 9,1 | 89,2 | 11090 |
| 95 | 7,6 | 47,5 | 0,8 | 9,6 | 93,8 | 12960 |
| 120 | 7,6 | 51,0 | 0,8 | 9,9 | 99,3 | 14680 |
| 150 | 7,6 | 53,7 | 0,8 | 10,3 | 103,9 | 16390 |
| 185 | 7,6 | 57,2 | 0,8 | 10,7 | 109,6 | 18350 |
| Type 409 .22 Class2 - 22,22 kV | ||||||
| 35 | 10,5 | 55,4 | 0,8 | 10,0 | 105,5 | 14070 |
| 50 | 10,5 | 58,1 | 0,8 | 10,3 | 109,4 | 15350 |
| 70 | 10,5 | 60,7 | 0,8 | 10,7 | 114,6 | 17220 |
| Nominal Cross Sectional Area | Thickness of Insulation | Area of Core Screen | Thickness of Pilot Conductor Covering | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) |
|---|---|---|---|---|---|---|
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| 16 | 1,6 | 0,6 | 2,5 | 3,8 | 38,4 | 2675 |
| 25 | 1,6 | 0,6 | 2,5 | 3,8 | 38,7 | 2950 |
| 35 | 1,6 | 0,6 | 2,5 | 4,0 | 44,9 | 4040 |
| 50 | 1,7 | 0,8 | 2,5 | 4,4 | 49,4 | 5040 |
| 70 | 1,8 | 0,8 | 2,5 | 4,8 | 55,9 | 6570 |
| 95 | 2,0 | 0,8 | 2,5 | 5,4 | 60,4 | 7760 |
| 120 | 2,1 | 1,0 | 3,5 | 5,8 | 68,6 | 9990 |
| 150 | 2,3 | 1,0 | 3,5 | 6,3 | 74,1 | 11890 |
| 185 | 2,5 | 1,0 | 3,5 | 6,8 | 80,8 | 13670 |
| 240 | 2,8 | 1,2 | 3,5 | 7,5 | 88,9 | 16800 |
| 300 | 3,0 | 1,2 | 4,5 | 8,2 | 101,7 | 22150 |
| Nominal Cross Sectional Area | Thickness of Insulation | Area of Core Screen | Thickness of Pilot Conductor Covering | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) |
|---|---|---|---|---|---|---|
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| Type 440 .1 Class2 - 1,1 kV | ||||||
| 6 | 1,5 | 7,2 | 1,0 | 3,8 | 30,3 | 1360 |
| 10 | 1,5 | 8,6 | 1,0 | 3,8 | 32,7 | 1680 |
| 16 | 1,6 | 9,6 | 1,0 | 4,0 | 36,1 | 2050 |
| 25 | 1,6 | 11,3 | 1,2 | 4,3 | 39,9 | 2730 |
| 35 | 1,6 | 12,4 | 1,2 | 4,6 | 43,5 | 3280 |
| 50 | 1,7 | 14,1 | 1,2 | 5,0 | 47,8 | 4080 |
| 70 | 1,8 | 16,5 | 1,2 | 5,4 | 54,4 | 5440 |
| 95 | 2,0 | 21,8 | 1,2 | 6,0 | 59,6 | 6630 |
| 120 | 2,1 | 24,7 | 1,4 | 6,4 | 65,8 | 8070 |
| 150 | 2,3 | 36,1 | 1,4 | 6,9 | 72,4 | 10280 |
| 185 | 2,5 | 40,5 | 1,4 | 7,4 | 78,9 | 11990 |
| 240 | 2,8 | 57,7 | 1,6 | 8,2 | 89,0 | 15610 |
| 300 | 3,0 | 63,2 | 1,6 | 8,8 | 96,9 | 18790 |
| Type 440 .3 Class2 - 3,3 kV | ||||||
| 16 | 3,0 | 13,1 | 1,4 | 5,3 | 46,4 | 3045 |
| 25 | 3,0 | 14,8 | 1,4 | 5,6 | 50,4 | 3820 |
| 35 | 3,0 | 15,8 | 1,4 | 5,9 | 53,8 | 4490 |
| 50 | 3,0 | 17,2 | 1,4 | 6,3 | 57,9 | 5280 |
| 70 | 3,0 | 18,6 | 1,4 | 6,6 | 63,0 | 6630 |
| 95 | 3,0 | 20,3 | 1,6 | 7,1 | 66,6 | 7580 |
| 120 | 3,0 | 27,2 | 1,6 | 7,4 | 72,8 | 9180 |
| 150 | 3,0 | 39,6 | 1,6 | 7,8 | 78,4 | 11250 |
| 185 | 3,0 | 42,2 | 1,6 | 8,2 | 83,9 | 12940 |
| 240 | 3,0 | 46,6 | 1,6 | 8,8 | 90,8 | 15630 |
| 300 | 3,0 | 63,2 | 1,6 | 9,4 | 99,4 | 19290 |
| Type 440 .6 Class2 - 6,6 kV | ||||||
| 16 | 5,0 | 17,2 | 1,4 | 6,4 | 57,6 | 4460 |
| 25 | 5,0 | 18,6 | 1,6 | 6,7 | 61,3 | 5240 |
| 35 | 5,0 | 18,6 | 1,6 | 7,0 | 64,9 | 6050 |
| 50 | 5,0 | 21,3 | 1,6 | 7,3 | 68,9 | 6920 |
| 70 | 5,0 | 23,4 | 1,6 | 7,7 | 74,1 | 8380 |
| 95 | 5,0 | 29,2 | 1,8 | 8,1 | 77,9 | 9690 |
| 120 | 5,0 | 31,7 | 1,8 | 8,5 | 83,6 | 11240 |
| 150 | 5,0 | 45,7 | 1,8 | 8,9 | 89,4 | 13570 |
| 185 | 5,0 | 48,4 | 1,8 | 9,3 | 95,0 | 15320 |
| 240 | 5,0 | 52,8 | 1,8 | 9,9 | 101,9 | 18300 |
| 300 | 5,0 | 71,5 | 1,8 | 10,4 | 110,1 | 22050 |
| Type 440 .11 Class2 - 11,11 kV | ||||||
| 25 | 7,6 | 23,7 | 2,0 | 8,1 | 75,7 | 7600 |
| 35 | 7,6 | 30,2 | 2,0 | 8,4 | 79,9 | 8710 |
| 50 | 7,6 | 31,7 | 2,0 | 8,7 | 84,2 | 9780 |
| 70 | 7,6 | 34,1 | 2,0 | 9,1 | 89,0 | 11420 |
| 95 | 7,6 | 47,5 | 2,2 | 9,6 | 93,9 | 13210 |
| 120 | 7,6 | 51,0 | 2,2 | 9,9 | 99,1 | 14960 |
| 150 | 7,6 | 53,7 | 2,2 | 10,3 | 103,9 | 16820 |
| 185 | 7,6 | 57,2 | 2,2 | 10,7 | 109,8 | 18890 |
| Type 440 .22 Class2 - 22,22 kV | ||||||
| 35 | 10,5 | 53,2 | 2,5 | 10,0 | 106,0 | 12800 |
| 50 | 10,5 | 54,1 | 2,5 | 10,3 | 109,5 | 13990 |
| 70 | 10,5 | 58,0 | 2,5 | 10,7 | 112,8 | 15600 |
| Nominal Cross Sectional Area | Thickness of Insulation | Area of Core Screen | Thickness of Pilot Conductor Covering | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) |
|---|---|---|---|---|---|---|
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| 6 | 1,5 | 0,8 | 0,8 | 3,8 | 28,6 | 1130 |
| 10 | 1,5 | 0,8 | 0,8 | 3,8 | 31,6 | 1375 |
| 16 | 1,6 | 1,0 | 0,8 | 3,9 | 34,3 | 1785 |
| 25 | 1,6 | 1,0 | 0,8 | 4,2 | 38,2 | 2320 |
| 35 | 1,6 | 1,0 | 0,8 | 4,4 | 41,6 | 2770 |
| 50 | 1,7 | 1,0 | 0,8 | 4,9 | 46,3 | 3540 |
| 70 | 1,8 | 1,0 | 0,8 | 5,3 | 52,9 | 4860 |
| 95 | 2,0 | 1,0 | 0,8 | 5,8 | 56,8 | 5810 |
| 120 | 2,1 | 1,0 | 0,8 | 6,3 | 63,2 | 7280 |
| 150 | 2,3 | 1,2 | 0,8 | 6,7 | 68,9 | 8850 |
| 185 | 2,5 | 1,2 | 0,8 | 7,3 | 75,7 | 10510 |
| 240 | 2,8 | 1,2 | 0,8 | 8,0 | 83,9 | 13330 |
| 300 | 3,0 | 1,4 | 0,8 | 8,7 | 92,2 | 16320 |
| Nominal Cross Sectional Area | Thickness of Insulation | Area of Core Screen | Thickness of Pilot Conductor Covering | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) |
|---|---|---|---|---|---|---|
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| Type 441 .3-Class1 - 3,3 kV | ||||||
| 16 | 2,2 | 1,0 | 0,8 | 4,6 | 43,5 | 2430 |
| 25 | 2,2 | 1,0 | 0,8 | 4,9 | 47,3 | 3047 |
| 35 | 2,2 | 1,0 | 0,8 | 5,2 | 50,7 | 3610 |
| 50 | 2,4 | 1,0 | 0,8 | 5,7 | 55,8 | 4490 |
| 70 | 2,4 | 1,0 | 0,8 | 6,0 | 60,9 | 5760 |
| 95 | 2,4 | 1,2 | 0,8 | 6,4 | 64,0 | 6630 |
| 120 | 2,4 | 1,2 | 0,8 | 6,5 | 68,9 | 7990 |
| 150 | 2,4 | 1,2 | 0,8 | 6,6 | 73,2 | 9370 |
| 185 | 2,4 | 1,4 | 0,8 | 6,7 | 77,7 | 10850 |
| 240 | 2,4 | 1,4 | 0,8 | 6,9 | 83,9 | 13200 |
| 300 | 2,4 | 1,4 | 0,8 | 7,0 | 89,6 | 15790 |
| Type 441 .6-Class1 - 6,6 kV | ||||||
| 16 | 3,0 | 1,0 | 0,8 | 5,0 | 47,5 | 2780 |
| 25 | 3,0 | 1,0 | 0,8 | 5,3 | 51,4 | 3530 |
| 35 | 3,0 | 1,0 | 0,8 | 5,6 | 54,9 | 4070 |
| 50 | 3,0 | 1,2 | 0,8 | 6,0 | 59,1 | 4890 |
| 70 | 3,0 | 1,2 | 0,8 | 6,3 | 63,9 | 6360 |
| 95 | 3,0 | 1,2 | 0,8 | 6,4 | 66,8 | 7090 |
| 120 | 3,0 | 1,2 | 0,8 | 6,6 | 71,8 | 8390 |
| 150 | 3,0 | 1,2 | 0,8 | 6,7 | 76,0 | 9780 |
| 185 | 3,0 | 1,4 | 0,8 | 6,8 | 80,8 | 11400 |
| 240 | 3,0 | 1,4 | 0,8 | 7,0 | 86,9 | 13680 |
| 300 | 3,0 | 1,4 | 0,8 | 7,1 | 92,7 | 16610 |
| Type 441 .11-Class1 - 11,11 kV | ||||||
| 25 | 5,0 | 1,2 | 0,8 | 6,3 | 62,5 | 4820 |
| 35 | 5,0 | 1,4 | 0,8 | 6,4 | 65,8 | 5480 |
| 50 | 5,0 | 1,4 | 0,8 | 6,5 | 68,4 | 6240 |
| 70 | 5,0 | 1,4 | 0,8 | 6,6 | 73,7 | 7550 |
| 95 | 5,0 | 1,4 | 0,8 | 6,8 | 76,7 | 8540 |
| 120 | 5,0 | 1,4 | 0,8 | 6,9 | 81,4 | 9900 |
| 150 | 5,0 | 1,4 | 0,8 | 7,0 | 85,8 | 11350 |
| 185 | 5,0 | 1,4 | 0,8 | 7,1 | 90,2 | 12990 |
| 240 | 5,0 | 1,4 | 0,8 | 7,3 | 96,5 | 15420 |
| Type 441 .22-Class1 - 22,22 kV | ||||||
| 35 | 7,6 | 1,8 | 0,8 | 6,9 | 78,7 | 7380 |
| 50 | 7,6 | 1,8 | 0,8 | 7,0 | 82,0 | 8260 |
| 70 | 7,6 | 1,8 | 0,8 | 7,1 | 86,8 | 9690 |
| 95 | 7,6 | 1,8 | 0,8 | 7,2 | 88,9 | 10740 |
| 120 | 7,6 | 1,8 | 0,8 | 7,3 | 94,2 | 12290 |
| 150 | 7,6 | 1,8 | 0,8 | 7,4 | 97,9 | 13880 |
| 185 | 7,6 | 1,8 | 0,8 | 7,6 | 103,4 | 15550 |
| Nominal Cross Sectional Area | Thickness of Insulation | Area of Core Screen | Thickness of Pilot Conductor Covering | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) |
|---|---|---|---|---|---|---|
| mm2 | mm | mm² | mm | mm | mm | kg/km |
| Type 450 .3-Class1 - 3,3 kV | ||||||
| 16 | 2,2 | 6,3 | 1,4 | 4,5 | 42,9 | 2680 |
| 25 | 2,2 | 8,3 | 1,4 | 4,8 | 47,3 | 3395 |
| 35 | 2,2 | 9,0 | 1,4 | 5,1 | 50,5 | 3950 |
| 50 | 2,4 | 10,0 | 1,4 | 5,6 | 55,8 | 4880 |
| 70 | 2,4 | 14,7 | 1,4 | 6,0 | 61,4 | 6390 |
| 95 | 2,4 | 15,5 | 1,6 | 6,3 | 64,8 | 7370 |
| 120 | 2,4 | 17,0 | 1,6 | 6,4 | 69,4 | 8700 |
| 150 | 2,4 | 18,1 | 1,6 | 6,6 | 73,5 | 10290 |
| 185 | 2,4 | 18,1 | 1,6 | 6,7 | 78,6 | 11780 |
| 240 | 2,4 | 26,7 | 1,6 | 6,9 | 84,9 | 14440 |
| 300 | 2,4 | 28,3 | 1,6 | 7,0 | 90,8 | 17510 |
| Type 450 .6 Class1- 6,6 kV | ||||||
| 16 | 3,0 | 8,3 | 1,4 | 5,0 | 47,8 | 3180 |
| 25 | 3,0 | 9,1 | 1,6 | 5,2 | 51,5 | 3840 |
| 35 | 3,0 | 9,8 | 1,6 | 5,5 | 54,9 | 4465 |
| 50 | 3,0 | 10,5 | 1,6 | 5,9 | 59,0 | 5370 |
| 70 | 3,0 | 15,5 | 1,6 | 6,3 | 64,7 | 6830 |
| 95 | 3,0 | 16,3 | 1,8 | 6,4 | 67,8 | 7750 |
| 120 | 3,0 | 17,7 | 1,8 | 6,5 | 72,3 | 9140 |
| 150 | 3,0 | 18,1 | 1,8 | 6,6 | 76,4 | 10780 |
| 185 | 3,0 | 18,1 | 1,8 | 6,8 | 81,5 | 12270 |
| 240 | 3,0 | 27,7 | 1,8 | 7,0 | 87,8 | 15100 |
| 300 | 3,0 | 28,3 | 1,8 | 7,1 | 93,7 | 17980 |
| Type 450 .11 Class1 - 11,11 kV | ||||||
| 25 | 5,0 | 15,1 | 2,0 | 6,3 | 63,3 | 5430 |
| 35 | 5,0 | 16,0 | 2,0 | 6,4 | 65,8 | 6020 |
| 50 | 5,0 | 17,0 | 2,0 | 6,5 | 69,9 | 6950 |
| 70 | 5,0 | 18,1 | 2,0 | 6,6 | 74,4 | 8280 |
| 95 | 5,0 | 18,1 | 2,2 | 6,7 | 76,9 | 9290 |
| 120 | 5,0 | 18,1 | 2,2 | 6,9 | 82,6 | 10880 |
| 150 | 5,0 | 27,3 | 2,2 | 7,0 | 86,9 | 12690 |
| 185 | 5,0 | 28,3 | 2,2 | 7,1 | 91,6 | 14370 |
| 240 | 5,0 | 28,3 | 2,2 | 7,3 | 97,3 | 16950 |
| 300 | 5,0 | 28,3 | 2,2 | 7,4 | 103,0 | 20100 |
| Type 450 .22 Class1 - 22,22 kV | ||||||
| 35 | 7,6 | 18,1 | 2,5 | 6,8 | 78,8 | 8070 |
| 50 | 7,6 | 18,1 | 2,5 | 6,9 | 82,4 | 9090 |
| 70 | 7,6 | 27,5 | 2,5 | 7,0 | 87,0 | 10760 |
| 95 | 7,6 | 28,3 | 2,5 | 7,2 | 90,8 | 11840 |
| 120 | 7,6 | 28,3 | 2,5 | 7,3 | 95,2 | 13600 |
| 150 | 7,6 | 28,3 | 2,5 | 7,4 | 98,9 | 15350 |
| 185 | 7,6 | 28,3 | 2,5 | 7,5 | 104,4 | 17070 |
| 240 | 7,6 | 28,3 | 2,5 | 7,7 | 101,2 | 19880 |
| 300 | 7,6 | 28,3 | 2,5 | 7,9 | 115,9 | 23200 |
| Type 450 .33 Class1 - 33,33 kV | ||||||
| 50 | 10,5 | 28,3 | 2,5 | 7,4 | 97,0 | 12320 |
| 70 | 10,5 | 28,3 | 2,5 | 7,5 | 101,8 | 13900 |
| 95 | 10,5 | 28,3 | 2,5 | 7,7 | 104,9 | 15150 |
| 120 | 10,5 | 28,3 | 2,5 | 7,8 | 110,0 | 16950 |
| 185 | 10,5 | 28,3 | 2,5 | 8,0 | 118,7 | 20820 |
| 240 | 10,5 | 28,3 | 2,5 | 8,2 | 124,9 | 23780 |
| 300 | 10,5 | 28,3 | 2,5 | 8,4 | 131,1 | 27350 |
| Nominal Cross Sectional Area | Thickness of Insulation | Thickness of Pilot/ Earth Conductor Covering | Thickness of Outer Sheath | Overall Diameter (approx.) | Weight (approx.) |
|---|---|---|---|---|---|
| mm2 | mm | mm | mm | mm | kg/km |
| Type 455 .3-Class1 - 3,3 kV | |||||
| 16 | 2,2 | 1,4 | 4,2 | 39,5 | 2260 |
| 25 | 2,2 | 1,4 | 4,5 | 43,8 | 2850 |
| 35 | 2,2 | 1,4 | 4,8 | 46,8 | 3390 |
| 50 | 2,4 | 1,4 | 5,3 | 52,3 | 4270 |
| 70 | 2,4 | 1,4 | 5,7 | 57,4 | 5590 |
| 95 | 2,4 | 1,6 | 6,1 | 60,9 | 6480 |
| 120 | 2,4 | 1,6 | 6,4 | 65,9 | 7900 |
| 150 | 2,4 | 1,6 | 6,5 | 70,3 | 9380 |
| 185 | 2,4 | 1,6 | 6,6 | 74,8 | 10790 |
| 240 | 2,4 | 1,6 | 6,8 | 81,1 | 13150 |
| 300 | 2,4 | 1,6 | 6,9 | 86,9 | 16100 |
| Type 455 .6-Class1 - 6,6 kV | |||||
| 16 | 3,0 | 1,4 | 4,7 | 44,5 | 2670 |
| 25 | 3,0 | 1,6 | 5,0 | 48,3 | 3350 |
| 35 | 3,0 | 1,6 | 5,3 | 51,7 | 3890 |
| 50 | 3,0 | 1,6 | 5,6 | 55,7 | 4680 |
| 70 | 3,0 | 1,6 | 6,0 | 60,9 | 5990 |
| 95 | 3,0 | 1,8 | 6,3 | 63,7 | 6970 |
| 120 | 3,0 | 1,8 | 6,5 | 69,0 | 8320 |
| 150 | 3,0 | 1,8 | 6,6 | 72,9 | 9790 |
| 185 | 3,0 | 1,8 | 6,7 | 77,7 | 11320 |
| 240 | 3,0 | 1,8 | 6,9 | 84,1 | 13680 |
| 300 | 3,0 | 1,8 | 7,0 | 89,9 | 16620 |
| Type 455 .11-Class1 - 11,11 kV | |||||
| 16 | 5,0 | 2,0 | 5,8 | 55,3 | 3930 |
| 25 | 5,0 | 2,0 | 6,1 | 59,5 | 4670 |
| 35 | 5,0 | 2,0 | 6,3 | 62,5 | 5300 |
| 50 | 5,0 | 2,0 | 6,4 | 65,8 | 6080 |
| 70 | 5,0 | 2,0 | 6,5 | 70,6 | 7490 |
| 95 | 5,0 | 2,2 | 6,7 | 73,8 | 8410 |
| 120 | 5,0 | 2,2 | 6,8 | 78,4 | 9880 |
| 150 | 5,0 | 2,2 | 6,9 | 82,6 | 11490 |
| 185 | 5,0 | 2,2 | 7,0 | 87,5 | 13110 |
| 240 | 5,0 | 2,2 | 7,2 | 93,6 | 15590 |
| Type 455 .22-class1 - 22,22 kV | |||||
| 16 | 7,6 | 2,5 | 6,6 | 68,9 | 5790 |
| 25 | 7,6 | 2,5 | 6,6 | 72,0 | 6610 |
| 35 | 7,6 | 2,5 | 6,7 | 75,1 | 7200 |
| 50 | 7,6 | 2,5 | 6,8 | 78,8 | 8180 |
| 70 | 7,6 | 2,5 | 7,0 | 83,6 | 9620 |
| 95 | 7,6 | 2,5 | 7,1 | 87,1 | 10670 |
| 120 | 7,6 | 2,5 | 7,2 | 91,0 | 12280 |
| 150 | 7,6 | 2,5 | 7,3 | 94,9 | 13990 |
| 185 | 7,6 | 2,5 | 7,4 | 100,3 | 15660 |
| Type 455 .33-Class1 - 33,33 kV | |||||
| 16 | 10,5 | 2,5 | 7,0 | 84,0 | 8240 |
| 25 | 10,5 | 2,5 | 7,1 | 86,9 | 9240 |
| 35 | 10,5 | 2,5 | 7,2 | 90,4 | 9960 |
| 50 | 10,5 | 2,5 | 7,3 | 93,2 | 10940 |
| 70 | 10,5 | 2,5 | 7,4 | 97,8 | 12580 |
| 95 | 10,5 | 2,5 | 7,6 | 101,0 | 13780 |
| 120 | 10,5 | 2,5 | 7,7 | 106,1 | 15500 |
| 150 | 10,5 | 2,5 | 7,8 | 110,5 | 17440 |
Why Huadong Cable
Our vision is to become an internationally renowned cable brand. Customer satisfaction, employee advancement, and corporate growth are our service tenets. High standards, globalization, and building an international brand are our business philosophy.
About HuaDong
Henan Huadong Cable Co., Ltd., established in 1999, is a state-level high-tech enterprise integrating scientific research, production, and trade. Deeply engaged in the Belt and Road Initiative, Huadong Cable exports its products to over 130 countries worldwide, covering regions including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.
HuaDong Technology
HuaDong Cable focuses on technological research and development, employing 60 professionals with senior technical titles and holding over 100 invention and utility model patents. The company has assembled a team of experienced technical engineers to ensure the quality of its cable products.
Main Products
Our main products: Marine cables, power cables, overhead cables, fire-resistant cables, low-smoke zero-halogen cables, rubber cables, high-temperature resistant cables, instrumentation and control cables, solar cables, and other products.
ISO, SGS, BV CERTIFICATION; TECHNICAL PATENTS AND PRODUCT CERTIFICATION
TECHNICAL AND CLIENTS
130+
Export Countries
100+
Technical Patents
3 billion+
Annual Productivity
400+
Employees
