(N)3GHSSHCH Cable

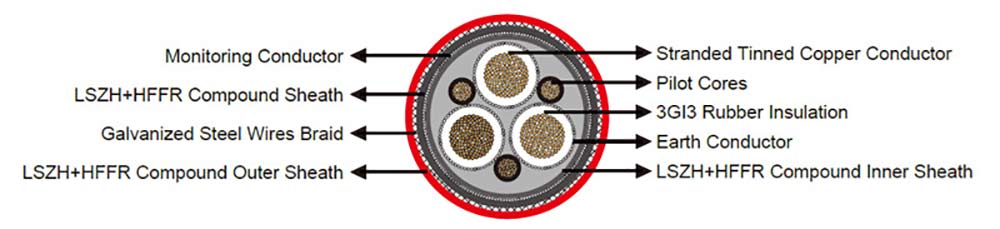

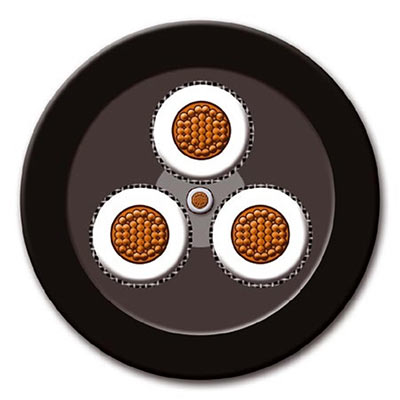

(N)3GHSSHCH CABLE STRUCTURE

Conductors	Flexible electrolytic copper wire acc. to DIN VDE 0295 – Class 5
Insulation Main Cores	3GI3 type EPR compound
Pilot Control Cores	3GI3 type EPR compound
Protective Conductor	Made of plain copper wires or copper wire braiding laid-up concentrically around each main core
Electrical Field	Extruded inner and outer rubber semiconductive layer For
Control	3,6/6 kV cables outer semiconductive layer only
Core Identification Main Cores	Natural coloring, design acc. to DIN VDE 0250 Part.1
Pilot Cores	Black colored and number coded
Lay Up	Three main conductors laid-up with three pilot control cores in the outer interstice Protective cores are concentrically wrapped over insulation of power cores
Inner Sheath	Special Halogen free and flame retardant HFFR compound
Monitoring	Semiconductive tape + overall concentric lay of copper wires and
Conductor	syntetic tape over wires
Inner Sheath	Special Halogen free and flame retardant HFFR compound
Armour	Galvanized steel wire braiding, coverage minimum 75 %
Outer Sheath	Special Halogen free and flame retardant HFFR compound
Colour	Red or Black

(N)3GHSSHCH CABLE APPLICATION

These cables are used for the connection of mobile operating equipment, in mines and underground excavations with hazardous environments, in stationary operation, e.g.high-voltage transformers in mining and tunnelling.

(N)3GHSSHCH CABLE PRODUCTION AND TEST STANDARDS

Construction	DIN VDE 0250-605 & IEC 60502-2
General Requirements	DIN VDE 0250-1
Guide to Use	DIN VDE 0298-3
Electrical Tests	DIN VDE 0472-501, 503, 508
Non-Electrical Tests	DIN VDE 0472-401, 402, 602, 303, 615
Under Fire Conditions Test	DIN VDE 0472-803, 804
Flame Retardant	VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1

(N)3GHSSHCH CABLE OPERATING CHARACTERISTICS

Rated Voltage	3,6/6 kV	6/10 kV	8,7/15 kV	12/20 kV	18/30 kV
AC Test Voltage	11 kV	17 kV	24 kV	29 kV	43 kV
Max. Permissible
Operating Voltage AC	4,2/7,2 kV	6,9/12 kV	10,4/18 kV	13,9/24 kV	20,8/36 kV
Max. Permissible
Operating Voltage DC	5,4/10,8 kV	9/18 kV	13,5/27 kV	18/36 kV	27/54 kV
Min. Bending Radius	Acc. to DIN VDE 0298 part 3
Current Carrying Capacity	According to DIN VDE 0298, Part 4
Working Temperature
Fixed	-40ºC … +80ºC
Mobile	+5ºC … +80ºC
Max. Tensile Load of cable	15 N/mm²
Max. Torsion	25º/m
Travel Speed	max. 30m/min
Minimum distance for change of direction	20 X D

(N)3GHSSHCH CABLE SPECIFICATION

VOLTAGE kV	NO. OF CORES (PHASE + EARTH+ CONTROL+ÜL)	NOMINAL CROSS SECTIONAL AREA mm2			CONDUCTOR DIAMETER	MINIMUM OVERALL DIAMETER	MAXIMUM OVERALL DIAMETER	MAXIMUM TENSILE LOAD	NOMINAL WEIGHT
		Phase N Conductor	Earth Conductor	Control Conductor	mm	mm	mm	N	kg/km
3.6/6	3+3+3+ÜL	25	25/3E	2.5ST	6.1	47.2	52.1	1125	4120
	3+3+3+ÜL	35	25/3E	2.5ST	7.2	49	54	1575	4570
	3+3+3+ÜL	50	25/3E	2.5ST	8.9	52.5	57.8	2250	5300
	3+3+3+ÜL	70	35/3E	2.5ST	10.6	56.1	61.6	3150	6370
	3+3+3+ÜL	95	50/3E	2.5ST	12.3	60.3	66.2	4275	7600
	3+3+3+ÜL	120	70/3E	2.5ST	13.8	63.8	70	5400	8990
	3+3+3+ÜL	150	70/3E	2.5ST	15.5	67.2	73.7	6750	10130
6/10	3+3+3+ÜL	25	25/3E	2.5ST	6.1	47.2	52.7	1125	4160
	3+3+3+ÜL	35	25/3E	2.5ST	7.2	49	54.6	1575	4610
	3+3+3+ÜL	50	25/3E	2.5ST	8.9	52.5	58.4	2250	5340
	3+3+3+ÜL	70	35/3E	2.5ST	10.6	56.1	62.2	3150	6410
	3+3+3+ÜL	95	50/3E	2.5ST	12.3	60.3	66.8	4275	7640
	3+3+3+ÜL	120	70/3E	2.5ST	13.8	63.8	70.7	5400	9030
	3+3+3+ÜL	150	70/3E	2.5ST	15.5	67.2	74.4	6750	10170
8.7/15	3+3+3+ÜL	25	25/3E	2.5ST	6.1	50.5	55.6	1125	4030
	3+3+3+ÜL	35	25/3E	2.5ST	7.2	52.3	57.6	1575	4480
	3+3+3+ÜL	50	25/3E	2.5ST	8.9	55.8	61.3	2250	5210
	3+3+3+ÜL	70	35/3E	2.5ST	10.6	59.3	65.2	3150	6230
	3+3+3+ÜL	95	50/3E	2.5ST	12.3	62.8	68.9	4275	7350
	3+3+3+ÜL	120	70/3E	2.5ST	13.8	66.2	72.6	5400	8540
12/20	3+3+3+ÜL	25	25/3E	2.5ST	6.1	52.9	58.2	1125	4330
	3+3+3+ÜL	35	25/3E	2.5ST	7.2	54.7	60.2	1575	4780
	3+3+3+ÜL	50	25/3E	2.5ST	8.9	58.3	64	2250	5540
	3+3+3+ÜL	70	35/3E	2.5ST	10.6	61.7	67.8	3150	6570
	3+3+3+ÜL	95	50/3E	2.5ST	12.3	65.2	71.5	4275	7690
	3+3+3+ÜL	120	70/3E	2.5ST	13.8	68.7	75.3	5400	8920
