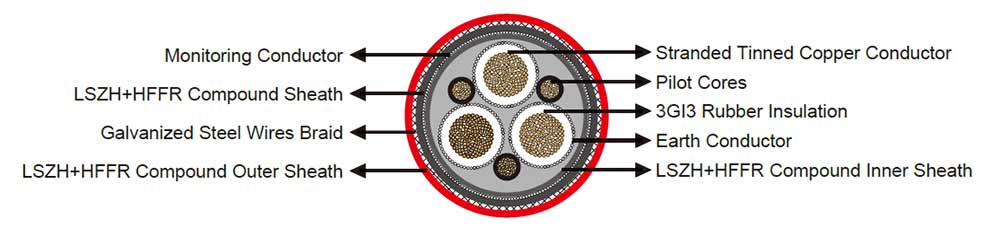

(N)3GHSSHCH Cable Construction
| conductor | Flexible electrolytic stranded tinned copper wire DIN VDE 0295 Class 5 |
| Insulation | |
| Main Cores | 3Gl3 type EPR compound |
| Pilot Control Cores | 3Gl3 type EPR compound |
| Electrical Field Control | Extruded inner and outer rubber semiconductive layer for 3.6/6 kV cables outer semiconductive layer only |
| Protective Conductor | Made of plain copper wires or copper wire braiding laid up concentrically around each main core |
| Core Identification | |
| Main Cores | Natural coloring, design acc to DIN VDE 0250 Part 1 |
| Pilot Cores | Black colored and number coded |
| Lay Up | Three main conductors laid-up with three pilot control cores in the outer interstice.Protective cores are concentricalty wrapped over insulation of power cores |
| Inner Sheath | Special Halogen free and flame retardant HFFR compound |
| Monitoring Conductor | Semioonductive tape + overall concentric lay of copper wires and syntetic tape over wires |
| Inner Sheath | Special Halogen free and flame retardant HFFR compound |
| Armour | Galvanized steel wire braiding, coverage minimum 75% |
| Outer Sheath | Special Halogen free and flame retardant HFFR compound, Red or Black |
(N)3GHSSHCH Cable Application
- Road and Rail Tunnels: Providing continuous coverage for emergency services (police, fire, ambulance), rail operator radios, and passenger cell phones.
- Underground Mines: Providing communication and tracking for personnel and equipment deep underground.
- Large Industrial Facilities: In areas with complex metal structures where radio waves are blocked, such as factories, shipyards, and power plants.
- Subway and Metro Systems
(N)3GHSSHCH Cable Technical Characteristics
| Rated Voltage | 3.6/6KV | 6/10KV | 8.7/15KV | 12/20KV | 18/30KV |
| AC Test Voltage | 11KV | 17KV | 24KV | 29KV | 43KV |
| Max.Permissible Operating Voltage AC | 4.2/7.2 KV | 6.9/12 KV | 10.4/18 KV | 13.9/24 KV | 20.8/36 KV |
| Max.Permissible Operating Voltage DC | 5.4/10.8 KV | 9/18 KV | 13.5/27 KV | 18/36 KV | 27/54 KV |
| Min Bending Radius | DIN VDE 0298-3 | ||||
| Current Carrying Capacities | DIN VDE 0298-4 | ||||
| Working Temperature | |||||
| Fixed | -40°C- +80°C | ||||
| Mobile | +5°C- +80°C | ||||
| Max.Tensile Load Of cable | 20N/mm² | ||||
| max.torsion | 25°/m | ||||
| Trawl Speed For Tunnelling App | Max.30 m/min | ||||
| Minimum Distarce For Change Of Direction | 20×D |
(N)3GHSSHCH Cable Standards
| Construction | DIN VDE 0250-605 & IEC 60502-2 |
| General Requirements | DIN VDE 0250-1 |
| Guide Use | DIN VDE 0298-3 |
| Electrical Tests | DIN VDE 0472-501, 503, 508 |
| Non-Electrical Tests | DIN VDE 0472-401. 402,602,303, 615 |
| Flame Retardant | VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1 |
(N)3GHSSHCH Cable Specification
| Voltage (KV) | Cross Section (mm²) | Overall Diameter min-max (mm) | conductor Resistance at 20°c (Ω/km) | Appro. Weight (kg/km) |
|---|---|---|---|---|
| 3.6/6 KV | 3x25+3x16/3E+3x2.5ST+ÜL | 47.0-51.0 | 0.78 | 3600 |
| 3x35+3x16/3E+3x2.5ST+ÜL | 49.0-54.0 | 0.554 | 4170 | |
| 3x50+3x25/3E+3x2.5ST+ÜL | 52.0-57.8 | 0.386 | 4850 | |
| 3x70+3x35/3E+3x2.5ST+ÜL | 56.1-61.2 | 0.272 | 5900 | |
| 3x95+3x50/3E+3x2.5ST+ÜL | 60.3-66.2 | 0.206 | 7044 | |
| 3x120+3x70/3E+3x2.5ST+ÜL | 63.8-70.2 | 0.161 | 8620 | |
| 3x150+3x70/3E+3x2.5ST+ÜL | 66.0-72.0 | 0.129 | 9860 | |
| 3x185+3x95/3E+3x2.5ST+ÜL | 70.0-74.0 | 0.106 | 11300 | |
| 6/10 KV | 3x25+3x16/3E+3x2.5ST+ÜL | 54.0-57.0 | 0.78 | 4200 |
| 3x35+3x16/3E+3x2.5ST+ÜL | 57.1-60.2 | 0.554 | 4650 | |
| 3x50+3x25/3E+3x2.5ST+ÜL | 60.4-63.6 | 0.386 | 5380 | |
| 3x70+3x35/3E+3x2.5ST+ÜL | 65.2-68.8 | 0.272 | 6450 | |
| 3x95+3x50/3E+3x2.5ST+ÜL | 68.0-71.9 | 0.206 | 7700 | |
| 3x120+3x70/3E+3x2.5ST+ÜL | 70.1-76.1 | 0.161 | 9260 | |
| 3x150+3x70/3E+3x2.5ST+ÜL | 73.0-78.0 | 0.129 | 10840 | |
| 3x185+3x95/3E+3x2.5ST+ÜL | 74.0-79.2 | 0.106 | 12400 | |
| 8.7/15KV | 3x25+3x16/3E+3x2.5ST+ÜL | 58.0-62.0 | 0.78 | 4530 |
| 3x35+3x16/3E+3x2.5ST+ÜL | 61.0-65.0 | 0.554 | 5100 | |
| 3x50+3x25/3E+3x2.5ST+ÜL | 64.7-68.7 | 0.386 | 5840 | |
| 3x70+3x35/3E+3x2.5ST+ÜL | 67.9-71.9 | 0.272 | 7840 | |
| 3x95+3x50/3E+3x2.5ST+ÜL | 72.4-76.4 | 0.206 | 9210 | |
| 12/20 KV | 3x25+3x16/3E+3x2.5ST+ÜL | 62.3-66.3 | 0.78 | 4920 |
| 3x35+3x16/3E+3x2.5ST+ÜL | 65.3-69.3 | 0.554 | 5400 | |
| 3x50+3x25/3E+3x2.5ST+ÜL | 69.0-73.0 | 0.386 | 6200 | |
| 3x70+3x35/3E+3x2.5ST+ÜL | 72.2-76.2 | 0.272 | 8240 | |
| 3x95+3x50/3E+3x2.5ST+ÜL | 76.8-80.8 | 0.206 | 9610 | |
| 3x120+3x70/3E+3x2.5ST+ÜL | 81.0-84.0 | 0.161 | 11260 | |
| 3x150+3x70/3E+3x2.5ST+ÜL | 84.5-88.7 | 0.129 | 13840 | |
| 3x185+3x95/3E+3x2.5ST+ÜL | 89.0-93.5 | 0.106 | 15400 |
