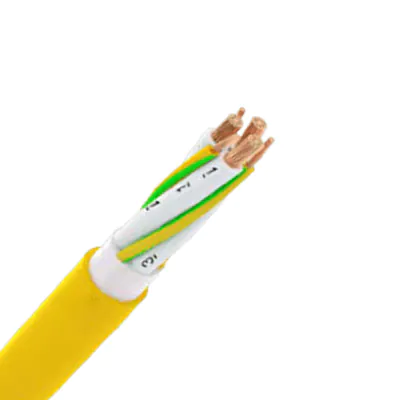

(N)SHÖU CABLE STRUCTURE

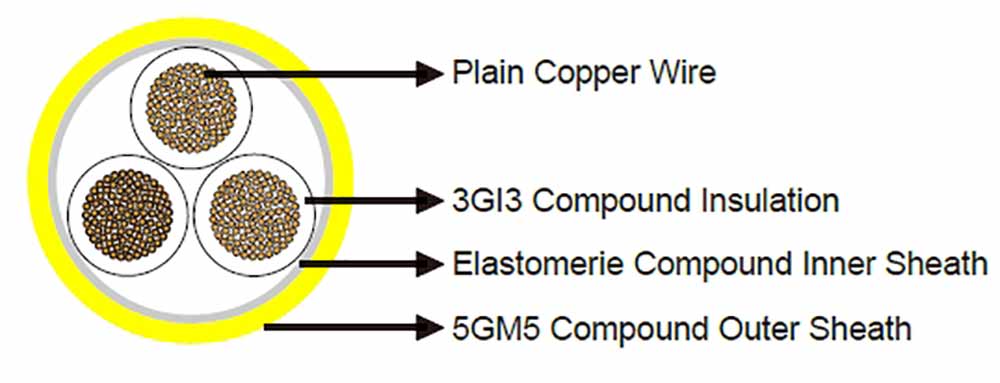

| conductor | Electrolytic stranded plain copper wire DIN VDE 0295 Class 5 |
| Insulation | All cores are insulated with 3Gl3 compound |
| Lay Up | All cores are laid up in contact with each other and intersititial ground cores |
| Inner Sheath | Special extruded elastomeric compound |
| Outer sheath | Heavy-duty elastomer outer sheath 5GM5.Yellow or black. |
(N)SHÖU CABLE APPLICATION
(N)SHÖU cable is used in open-cast mining and quarries and similar plants. Also suitable for laying alongside conveyor belts, on material handling equipment, It can be used for tunneling sites and similar applications
(N)SHÖU CABLE OPERATING CHARACTERISTICS
| Rated Voltage | 0,6 / 1 kV |
| Max. Permissible | |
| Operating Voltage AC | 0,7 / 1,2 kV |
| Max. Permissible | |
| Operating Voltage DC | 0,9 / 1,8 kV |
| AC Test Voltage | 3 kV |
| Min Bending Radius | Acc. to DIN VDE 0298 part 3 |
| Current Carrying Capacity | According to DIN VDE 0298, Part 4 |
| Working Temperature | |
| Fixed | -40ºC … +80ºC |
| Mobile | -25ºC … +80ºC |
| Max. Tensile Load of cable | 15 N / mm² |
(N)SHÖU CABLE PRODUCTION AND TEST STANDARDS
| Construction | DIN VDE 0250-812 |
| General Requirements | DIN VDE 0250-1 |
| Guide to Use | DIN VDE 0298-3 |
| Electrical Tests | DIN VDE 0472-501, 503, 508 |
| Non-Electrical Tests | DIN VDE 0472-401, 402, 602, 303, 615 |
| Under Fire Conditions Tests | DIN VDE 0472-803, 804 |
| Flame Retardant | VDE 0482-332-1-2, DIN EN 60332-1-2, |
| IEC 60332-1 | |
| Oil Resistant | HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1 |
(N)SHÖU CABLE SPECIFICATION
| Cross Section (mm2) | Overall Diameter Min-Max(mm) | Approximateweight (kg /km) |
|---|---|---|
| 3x1,5 | 9,7-10,3 | 145 |
| 3x2,5 | 11,2 -12,8 | 220 |
| 3x4 | 12,5 -14,1 | 300 |
| 3x6 | 13,2 -15,0 | 380 |
| 3x10 | 16,6 - 18,6 | 590 |
| 3 x16 | 19,5 -21,0 | 797 |
| 3x25 | 22,9-24,9 | 1206 |
| 3x35 | 24,9-27,9 | 1670 |
| 3x50 | 29,4-33,0 | 2195 |
| 3 x70 | 34,8 -37,8 | 3124 |
| 3 x95 | 40,9-43,9 | 4100 |
| 3x120 | 43,4-47,7 | 4730 |
| 3 x150 | 47,8 -54,0 | 5916 |
| 3 x185 | 53,1-58,6 | 7270 |
| 4x1,5 | 10,5-12,6 | 200 |
| 4 x2,5 | 12,0-13,7 | 260 |
| 4x4 | 13,5 -15,1 | 360 |
| 4x6 | 15,7-17,7 | 458 |
| 4x10 | 17,4-20,2 | 670 |
| 4 x16 | 21,4 -231 | 1038 |
| 4x25 | 24,5 -281 | 1576 |
| 4x35 | 28,4-31,4 | 1978 |
| 4x50 | 33,6-36,6 | 2765 |
| 4x70 | 38,8 -42,5 | 3930 |
| 4x95 | 44,8 -47,8 | 5165 |
| 4x120 | 50,0-53,9 | 6200 |
| 4x150 | 55,0-58,9 | 7537 |
| 4x185 | 59,0-63,3 | 9420 |
| 5x1,5 | 11,4 -13,5 | 234 |
| 5x2,5 | 12,9 -1,6 | 318 |
| 5x4 | 14,7 -16,7 | 434 |
| 5x6 | 16,1-18,6 | 594 |
| 5x10 | 19,0-22,0 | 820 |
| 5x16 | 23,2-25,2 | 1285 |
| 5x25 | 28,0-31,0 | 1864 |
| 5x35 | 34,0-37,5 | 2675 |
| 7 x15 | 12,9 -14,5 | 300 |
| 7 x2,5 | 14,9 -17,4 | 458 |
| 12 x1,5 | 15,8 -17,8 | 420 |
| 12 x 2,5 | 17,3 -19,6 | 580 |
| 18 x 1,5 | 18,5-20,5 | 610 |
| 18 x2,5 | 212-23,4 | 900 |
| 24 x1,5 | 20,9-23,1 | 760 |
| 24 x2,5 | 22,8-24,8 | 1140 |
| 3x 50/25 | 29,0-33,5 | 2510 |
| 3 x70/35 | 34,8-37,8 | 3500 |
| 3 x95/50 | 44,0-49,0 | 4300 |
| 3x120/70 | 44,7 -47,7 | 5470 |
| 3x150/70 | 49,5-54,8 | 7000 |
| 3 x185/95 | 54,5 - 58,5 | 8300 |
| 3x240/120 | 60,9-66,2 | 10500 |
