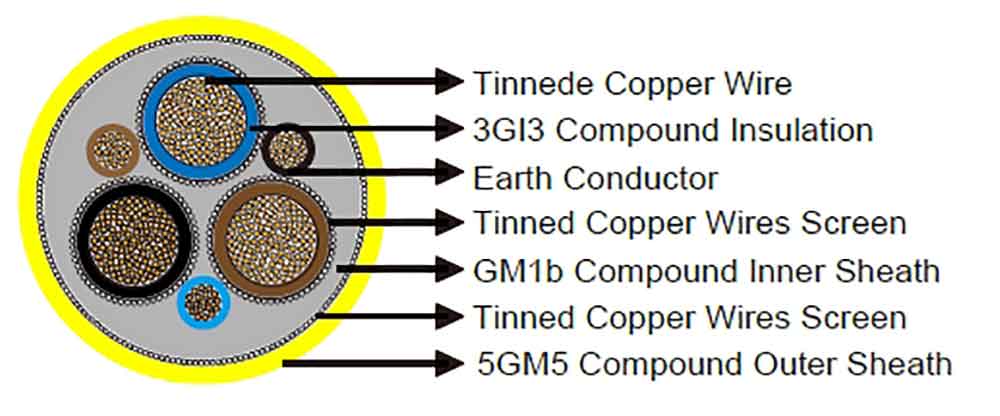

NSSHÖU CABLE STRUCTURE
| Conductor | Electrolytic, stranded, tinned copper wire DIN VDE 0295 Class 5 |
| Insulation | All cores are insulated with 3GI3 compound (acc. to DIN VDE 0207 Part 20). |
| Screen | ..3/E coded types has individual screens made by laying up tinned copper wires over the insulation. |
| Lay Up | All cores are laid up in contact with each other and intersititial ground cores. |
| Inner Sheath | Special elastomeric compound GM1b (acc. to DIN VDE 0207 Part 21) |
| Screen | ...kon coded types has a concentric overall screen made of tinned copper wires in between inner and outer sheaths |
| Outer Sheath | Heavy-duty elastomer outer sheath 5GM5 (acc. to DIN VDE 0207 Part 21) |
NSSHÖU CABLE APPLICATION
NSSHÖU cable is used in mines, quarries, industrial areas, construction sites, agricultural operations and as trailing cable. The cables are also suitable for fixed application as power supply cable for underground mining and open-cast mining applications, for tunnelling applications and similar applications.
NSSHÖU CABLE OPERATING CHARACTERISTICS
| Rated Voltage | 0,6 / 1 kV |
| Max. Permissible | |
| Operating Voltage AC | 0,7 / 1,2 kV |
| Max. Permissible | |
| Operating Voltage DC | 0,9 / 1,8 kV |
| AC Test Voltage | 3 kV |
| Min Bending Radius | VDE 0298-3 Tab. 3 |
| Current Carrying Capacities | VDE 0298-4 |
| Working Temperature | |
| Fixed | -40ºC … +80ºC |
| Mobile | -25ºC … +80ºC |
| Max. Tensile Load of Cable | 15N/mm |
NSSHÖU CABLE PRODUCTION AND TEST STANDARDS
| Construction | DIN VDE 0250-812 |
| General Requirements | DIN VDE 0250-1 |
| Guide to Use | DIN VDE 0298-3 |
| Electrical Tests | DIN VDE 0472-501, 503, 508 |
| Non-Electrical Tests | DIN VDE 0472-401, 402, 602, 303, 615 |
| Under Fire Conditions Tests | DIN VDE 0472-803, 804 |
| Flame Retardant | VDE 0482-332-1-2, DIN EN 60332-1-2, |
| IEC 60332-1 | |
| Oil Resistant | HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1 |
NSSHÖU CABLE SPECIFICATION
| Cross Section (mm2) | Overall Diameter Min – Max (mm) | Approximate weight (kg / km) |
|---|---|---|
| 1 x 1,5 | 6,0 – 6,6 | 56 |
| 1 x 2,5 | 6,7 – 7,4 | 73 |
| 1 x 4 | 7,3 – 8,1 | 95 |
| 1 x 6 | 7,8 – 8,6 | 117 |
| 1 x 10 | 9,2 – 10,2 | 174 |
| 1 x 16 | 10,2 – 11,2 | 236 |
| 1 x 25 | 13,1 – 14,1 | 372 |
| 1 x 35 | 14,0 – 15,4 | 470 |
| 1 x 50 | 15,8 – 17,4 | 626 |
| 1 x 70 | 18,0 – 19,8 | 866 |
| 1 x 95 | 19,0 – 21,9 | 1906 |
| 1 x 120 | 22,0 – 24,4 | 1382 |
| 1 x 150 | 23,8 – 26,3 | 1675 |
| 1 x 185 | 26,9 – 29,7 | 2072 |
| 1 x 240 | 30,0 – 33,2 | 2710 |
| 1 x 300 | 33,6 – 37,2 | 3372 |
| 1 x 400 | 38,3 – 42,3 | 4320 |
| 1 x 500* | 41,0 – 45,4 | 5582 |
| 2 x 1,5 | 10,8 – 12,0 | 170 |
| 2 x 2,5 | 12,1 – 13,3 | 217 |
| 2 x 4 | 14,5 – 16,10 | 321 |
| 2 x 6 | 15,6 – 17,2 | 386 |
| 2 x 10 | 19,2 – 21,2 | 597 |
| 2 x 16 | 21,1 – 23,3 | 770 |
| 2 x 25 | 26,4 – 29,2 | 1186 |
| 2 x 35 | 28,1 – 31,1 | 1440 |
| 2 x 50 | 33,1 – 36,5 | 2001 |
| 2 x 70 | 38,0 – 42,0 | 2753 |
| 2 x 95 | 41,8 – 46,2 | 3414 |
| 2 x 120 | 46,7 – 51,7 | 4315 |
| 3 x 1,5 | 11,3 – 12,5 | 192 |
| 3 x 2,5 | 12,7 – 14,1 | 254 |
| 3 x 4 | 15,3 – 16,9 | 377 |
| 3 x 6 | 16,3 – 18,1 | 456 |
| 3 x 10 | 20,2 – 22,4 | 715 |
| 3 x 16 | 22,2 – 24,6 | 937 |
| 3 x 25 | 27,9 – 30,9 | 1444 |
| 3 x 35 | 31,1 – 34,3 | 1885 |
| 3 x 50 | 36,3 – 40,1 | 2600 |
| 3 x 70 | 40,2 – 44,4 | 3416 |
| 3 x 95 | 46,0 – 50,8 | 4466 |
| 3 x 120 | 49,5 – 54,7 | 5397 |
| 3 x 150 | 53,1 – 58,7 | 6451 |
| 3 x 185 | 59,6 – 65,8 | 7953 |
| 4 x 1,5 | 12,2 – 13,4 | 224 |
| 4 x 2,5 | 14,7 – 16,3 | 337 |
| 4 x 4 | 16,3 – 18,1 | 440 |
| 4 x 6 | 17,6 – 19,4 | 542 |
| 4 x 10 | 21,9 – 24,2 | 852 |
| 4 x 16 | 25,1 – 27,7 | 1216 |
| 4 x 25 | 31,3 – 34,5 | 1853 |
| 4 x 35 | 33,5 – 37,1 | 2324 |
| 4 x 50 | 39,2 – 43,2 | 3210 |
| 4 x 70 | 43,6 – 48,2 | 4240 |
| 4 x 95 | 50,0 – 55,2 | 5540 |
| 4 x 120 | 55,6 – 61,4 | 6985 |
| 4 x 150 | 60,0 – 66,3 | 8385 |
| 4 x 185 | 67,0 – 74,0 | 10285 |
| 4 x 240* | 74,5 – 82,3 | 13130 |
| 4 x 300* | 81,0 – 89,6 | 16155 |
