(N)TSCGEWöU FO(LWL) Cable

(N)TSCGEWöU FO(LWL) Cable

(N)TSCGEWöU FO(LWL) is a type of flexible reeling cable designed for use in demanding environments like mining, tunneling, and material handling. It features both power conductors and optical fibers for data transmission, allowing for movement of equipment during operation.

  • iso-certification
  • ce-certification
  • ccc-certification
  • ul-certification
  • abs-certification
  • description
  • specifications
  • why choose us

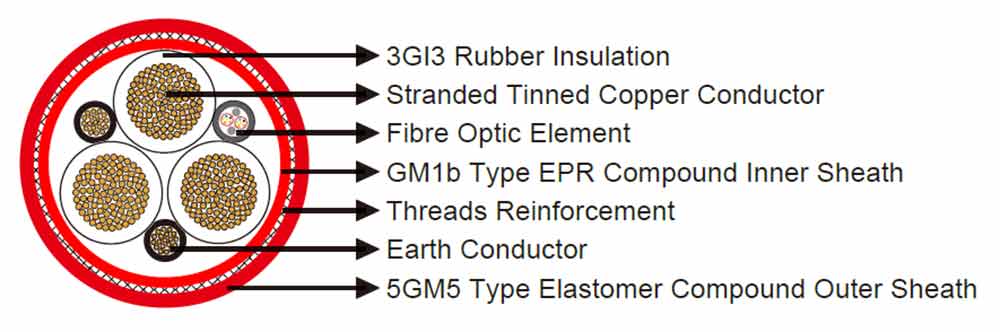

(N)TSCGEWöU FO(LWL) CABLE STRUCTURE

(N)TSCGEWöU FO(LWL) CABLE STRUCTURE

conductor Electrolytic stranded tinned copper wire DIN VDE 0295 Class 5
Insulation 3Gl3 type EPR compound
Electrical Field Control Inner and Outer semiconductive layer of semiconductive rubber
Protective-Earth conductor Tinned Copper conductor with semiconductive layer
Optical Fiber Fibre core diameter of fiber 9μm, 625μm or 50μm; Diameter over cladding 125μm; diameter over coating 250 μm; designs up to 24 fibers available.
Fiber coading Color coding of the fibers and buffering tube for identification of the fiber type.
Fiber covering Hollow core with filling compound,basic material ETFE
Arrangement of Fiber cores Six cores in one layer and specially laid-up around the central support element
Lay Up Three main conductors laid-up with two control cores and fiber optic element in the outer interstice
Inner Sheath GM1b Type EPR compound
Reinforcement Embedded braid made of anti torsion synthetic threads
Outer Sheath 5GM5 Type elastomer compound. Red

(N)TSCGEWöU FO(LWL) CABLE Application

For the connection of electrical equipment large material handling machines such as excavators, cranes, dumpers in mining and tunneling applications in combination of power and data transmission. The flexible cable design allows for movement of the equipment during operation. Suitable also as flex MV reeling cable and also for festoon systems.

(N)TSCGEWöU FO(LWL) CABLE PRODUCTION AND TEST STANDARDS

construction DIN VDE 0250-812
General Requirements DIN VDE 0250-1
Guide Use DIN VDE 0298-3
Electrical Tests DIN VDE 0472-501, 503, 508
Non-Electrical Tests DIN VDE 0472-401. 402,602,303, 615
Under Fire Condition Tests DIN VDE 0472-803, 804
Flame Retardant VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1
Oil Resistant HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1

(N)TSCGEWöU FO(LWL) CABLE OPERATING CHARACTERISTICS

Rated Voltage 3.6/6 KV 6/10 KV 8.7/15KV 12/20KV 18/30KV
AC Test Voltage 11KV 17KV 24KV 29KV 43KV
Max.Permissible 4.2/7.2 KV 6.9/12 KV 10.4/18 KV 13.9/24 KV 20.8/36 KV
Operating Voltage AC
Max.Permissible 5.4/10.8 KV 9/18 KV 13.5/27 KV 18/36 KV 27/54 KV
Operating Voltage DC
Min Bending Radius DIN VDE 0298-3
Current Carrying Capacities DIN VDE 0298-4
Working Temperature
Fixed -40°C-+80°C
Mobile -25°C-+80°C
Max.Tensile Load Of cable 15N/mm²
max.torsion 25°/m
Trawl Speed For Tunnelling App Max.30 m/min
Minimum Distarce For Change Of Direction 20×D
  • 3.6/6 KV (N)TSCGEWöU FO(LWL) CABLE Specification
  • 6/10 KV (N)TSCGEWöU FO(LWL) CABLE Specification
  • 8.7/15 KV (N)TSCGEWöU FO(LWL) CABLE Specification
  • 12/20 KV (N)TSCGEWöU FO(LWL) CABLE Specification
  • 14/25 KV (N)TSCGEWöU FO(LWL) CABLE Specification
  • 18/30 KV (N)TSCGEWöU FO(LWL) CABLE Specification
  • 20/35 KV (N)TSCGEWöU FO(LWL) CABLE Specification
Cross SectionOverall Diameter min-maxPermissible Tensile Force max.(n)conductor Resistance at 20°cAppro. Weight
(mm2)(mm)(Ω/km)(kg/km)
3x25+2x25/2+FO42.2-45.215000.782660
3x25+2x50/2+FO45.0-48.015000.782990
3x35+2x25/2+FO43.8-46.821000.5543050
3x35+2x50/2+FO45.9-48.921000.5543400
3x50+2x25/2+FO45.1-48.130000.3863540
3x50+2x50/2+FO48.8-51.830000.3864070
3x70+2x35/2+FO48.8-51.842000.2724480
3x70+2x50/2+FO52.5-56.542000.2724840
3x95+2x50/2+FO54.3-58.357000.2065800
3x120+2x70/2+FO58.2-62.272000.1617010
3x150+2x70/2+FO62.4-66.490000.1298210
3x185+2x95/2+FO67.8-71.8111000.1069920
3x240+2x120/2+FO74.4-78.4144000.0812530
3x300+2x150/2+FO80.6-85.6180000.06415330
Cross SectionOverall Diameter min-maxPermissible Tensile Force max.(n)conductor Resistance at 20°cAppro. Weight
(mm2)(mm)(Ω/km)(kg/km)
3x25+2x25/2+FO42.7-45.715000.782740
3x25+2x50/2+FO46.0-49.015000.782980
3x35+2x25/2+FO45.2-48.221000.5543160
3x35+2x50/2+FO47.6-50.621000.5543610
3x50+2x25/2+FO46.5-49.530000.3863670
3x50+2x50/2+FO50.4-53.430000.3864020
3x70+2x35/2+FO50.3-53.342000.2724610
3x70+2x50/2+FO53.8-56.842000.2725160
3x95+2x50/2+FO55.6-59.657000.2065940
3x120+2x70/2+FO60.4-63.472000.1617150
3x150+2x70/2+FO65.2-69.290000.1298600
3x185+2x95/2+FO69.2-73.2111000.10610110
3x240+2x120/2+FO77.2-81.2144000.0812980
3x300+2x150/2+FO81.8-86.8180000.06415550
Cross SectionOverall Diameter min-maxPermissible Tensile Force max.(n)conductor Resistance at 20°cAppro. Weight
(mm2)(mm)(Ω/km)(kg/km)
3x25+2x25/2+FO46.0-49.015000.783000
3x25+2x50/2+FO47.4-51.415000.783350
3x35+2x25/2+FO46.3-49.321000.5543550
3x35+2x50/2+FO50.1-53.121000.5543710
3x50+2x25/2+FO50.1-53.130000.3864020
3x50+2x50/2+FO53.8-57.830000.3864640
3x70+2x35/2+FO54.8-58.842000.2725170
3x70+2x50/2+FO54.8-58.842000.2725280
3x95+2x50/2+FO59.2-63.257000.2066370
3x120+2x70/2+FO64.6-68.672000.1617830
3x150+2x70/2+FO68.8-72.890000.1299090
3x185+2x95/2+FO72.8-76.8111000.10610610
3x240+2x120/2+FO76.8-79.7144000.0813540
3x300+2x150/2+FO87.9-92.9180000.06416530
Cross SectionOverall Diameter min-maxPermissible Tensile Force max.(n)conductor Resistance at 20°cAppro. Weight
(mm2)(mm)(Ω/km)(kg/km)
3x25+2x25/2+FO46.5-49.515000.783070
3x25+2x50/2+FO49.5-52.515000.783400
3x35+2x25/2+FO49.3-52.321000.5543590
3x35+2x50/2+FO53.1-57.121000.5544200
3x50+2x25/2+FO54.1-58.130000.3864500
3x50+2x50/2+FO54.1-58.130000.3864590
3x70+2x35/2+FO58.0-62.042000.2725540
3x70+2x50/2+FO58.0-62.042000.2725650
3x95+2x50/2+FO62.4-66.457000.2066750
3x120+2x70/2+FO67.7-71.772000.1618400
3x150+2x70/2+FO71.9-75.990000.1299520
3x185+2x95/2+FO77.3-81.3111000.10611340
3x240+2x120/2+FO83.8-87.8144000.0814060
3x300+2x150/2+FO91.0-96.0180000.06417090
Cross SectionOverall Diameter min-maxPermissible Tensile Force max.(n)conductor Resistance at 20°cAppro. Weight
(mm2)(mm)(Ω/km)(kg/km)
3x25+2x25/2+FO50.5-53.515000.783460
3x25+2x50/2+FO50.5-53.515000.783550
3x35+2x25/2+FO54.2-57.221000.5544180
3x35+2x50/2+FO54.2-57.221000.5544260
3x50+2x25/2+FO57.0-61.030000.3864980
3x50+2x50/2+FO57.0-61.030000.3865050
3x70+2x35/2+FO62.0-66.042000.2726020
3x70+2x50/2+FO62.0-66.042000.2726130
3x95+2x50/2+FO67.9-71.957000.2067500
3x120+2x70/2+FO71.6-75.672000.1618790
3x150+2x70/2+FO77.3-81.390000.12910390
3x185+2x95/2+FO81.4-85.4111000.10611980
3x240+2x120/2+FO89.2-94.2144000.0815130
3x300+2x150/2+FO95.0-100.0180000.06417830
Cross SectionOverall Diameter min-maxPermissible Tensile Force max.(n)conductor Resistance at 20°cAppro. Weight
(mm2)(mm)(Ω/km)(kg/km)
3x25+2x25/2+FO55.1-59.115000.784020
3x25+2x50/2+FO55.1-59.115000.784100
3x35+2x25/2+FO58.0-62.021000.5544590
3x35+2x50/2+FO58.0-62.021000.5544670
3x50+2x25/2+FO61.8-65.830000.3865410
3x50+2x50/2+FO61.8-65.830000.3865480
3x70+2x35/2+FO67.0-71.042000.2726710
3x70+2x50/2+FO67.0-71.042000.2726810
3x95+2x50/2+FO71.4-75.457000.2067960
3x120+2x70/2+FO76.7-80.772000.1619510
3x150+2x70/2+FO81.0-85.090000.12910950
3x185+2x95/2+FO83.9-88.9111000.10612560
3x240+2x120/2+FO92.8-97.8144000.0815770
3x300+2x150/2+FO99.6-104.6180000.06418770
Cross SectionOverall Diameter min-maxPermissible Tensile Force max.(n)conductor Resistance at 20°cAppro. Weight
(mm2)(mm)(Ω/km)(kg/km)
3x25+2x25/2+FO59.8-63.815000.784580
3x35+2x25/2+FO64.4-68.421000.5545410
3x50+2x25/2+FO68.1-72.130000.3866270
3x50+2x50/2+FO68.1-72.130000.3866350
3x70+2x35/2+FO71.8-75.842000.2727350
