SHD-GC-CP Portable Mining Cable Construction

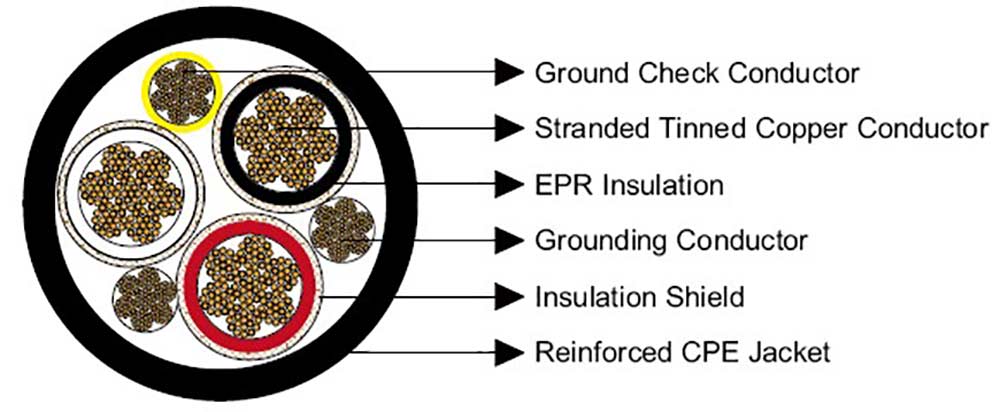

| Conductor | Very flexible stranded copper conductors. |
| Conductor shield | Conducting stress control material. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation shield | Conducting material. |
| Metallic shield | Composite tinned copper/fiber braid. |
| Grounding conductors | Two flexible stranded bare copper conductors. |
| Ground-check conductor | one highly flexible conductor, insulated with EPDM with excellent insulation resistance properties and highly reinforced thanks to the incorporation of aramid yarns in the conductor. |
| Reinforcement | Fabric tape and double synthetic servings applied over the cores asembly. |
| Jacket | Extra-heavy-duty crosslinked Chlorinated Polyethylene (CPE). Colour upon request. |
SHD-GC-CP Portable Mining Cable Application
Extra-heavy-duty trailing cable designed for used in mining machines, dredges,and similar mobile equipment, also suitable to be used with stationary equipment or medium voltage distribution in mines where higher flexibility is desired.
SHD-GC-CP Portable Mining Cable Standards
Product ICEA S-75-381
SHD-GC-CP Portable Mining Cable Characteristics
| Construction characteristics | |
| Insulation | EPR |
| Outer sheath | Chlorinated Polyethyene (CPE) |
| Mechanical characteristics | |
| Abrasion resistance | Good |
| Cable flexibility | Excellent |
| Mechanical resistance to impacts | Excellent |
| Tear resistance | Good |
| Usage characteristics | |
| Max. conductor temperature in service | 90 °C |
| Overload maximum core temperature | 130 °C |
| Short-circuit max. conductor temperature | 250 °C |
| Flame retardant | IEC 60332-1 |
| Oil resistance | ICEA S-75-381 (121°C/18h) |
| Weather resistance | Excellent |
SHD-GC-CP Portable Mining Cable Specification
| Name | Total nb wires | Phase Cond. Diam. [mm] | Av. insul. thickness [mm] | Average sheath thickness [mm] | Outer Diameter [mm] | Min. bend. radius. free flex. [mm] | Approx. weight [kg/km] |
|---|---|---|---|---|---|---|---|
| 3x1/0+2x4+1x6 2kV | 391 | 9.2 | 2.03 | 4.8 | 52 | 312 | 3900 |
| 3x2/0+2x3+1x6 2k | 493 | 10.3 | 2.03 | 5.2 | 54 | 324 | 4400 |
| 3x3/0+2x2+1x6 2kV | 620 | 11.5 | 2.03 | 5.2 | 56 | 336 | 5200 |
| 3x4/0+2x1+1x6 2kV | 782 | 12.9 | 2.03 | 5.6 | 58 | 348 | 6300 |
| 3x250+2x1/0+1x6 2kV | 919 | 14.7 | 2.41 | 5.6 | 64 | 384 | 7200 |
| 3x350+2x2/0+1x6 2kV | 1284 | 17.5 | 2.41 | 6.0 | 71 | 426 | 9600 |
| 3x500+2x4/0+1x6 2kV | 1830 | 21 | 2.41 | 6.7 | 81 | 486 | 13000 |
| 3x4+2x8+1x6 5kV | 155 | 5.8 | 2.79 | 4.7 | 44 | 264 | 2400 |
| 3x3+2x8+1x6 5kV | 198 | 6.5 | 2.79 | 5.2 | 46 | 276 | 2900 |
| 3x2+2x6+1x6 5kV | 249 | 7.3 | 2.79 | 5.2 | 48 | 288 | 3300 |
| 3x1+2x5+1x6 5kV | 312 | 8.2 | 2.79 | 5.2 | 50 | 300 | 3700 |
| 3x1/0+2x4+1x6 5kV | 391 | 9.2 | 2.79 | 5.6 | 54 | 324 | 4300 |
| 3x2/0+2x3+1x6 5kV | 493 | 10.3 | 2.79 | 5.6 | 57 | 342 | 4800 |
| 3x3/0+2x2+1x6 5kV | 620 | 11.5 | 2.79 | 6.0 | 60 | 360 | 5600 |
| 3x4/0+2x1+1x6 5kV | 782 | 12.9 | 2.79 | 6.0 | 63 | 378 | 6800 |
| 3x250+2x1/0+1x6 5kV | 919 | 14.7 | 3.05 | 6.4 | 68 | 408 | 8000 |
| 3x300+2x1/0+1x6 5kV | 1101 | 16.3 | 3.05 | 6.4 | 72 | 432 | 9500 |
| 3x350+2x2/0+1x6 5kV | 1284 | 17.5 | 3.05 | 6.7 | 76 | 456 | 10200 |
| 3x500+2x4/0+1x6 5kV | 1830 | 21 | 3.05 | 7.1 | 85 | 510 | 13700 |
| 3x4+2x8+1x6 8kV | 155 | 5.8 | 3.81 | 5.21 | 48 | 384 | 2900 |
| 3x3+2x8+1x6 8kV | 198 | 6.5 | 3.81 | 5.21 | 49 | 392 | 3200 |
| 3x2+2x6+1x6 8kV | 249 | 7.3 | 3.81 | 5.59 | 51 | 408 | 3700 |
| 3x1+2x5+1x6 8kV | 312 | 8.2 | 3.81 | 5.59 | 53 | 424 | 4200 |
| 3x1/0+2x4+1x6 8kV | 391 | 9.2 | 3.81 | 5.59 | 55 | 440 | 4500 |
| 3x2/0+2x3+1x6 8kV | 493 | 10.3 | 3.81 | 5.97 | 59 | 472 | 5400 |
| 3x3/0+2x2+1x6 8kV | 620 | 11.5 | 3.81 | 6.35 | 62 | 472 | 6200 |
| 3x3/0+2x2+1x4 8kV | 620 | 11.5 | 3.81 | 6.35 | 62 | 496 | 6200 |
| 3x4/0+2x1+1x6 8kV | 782 | 12.9 | 3.81 | 6.35 | 65 | 520 | 7100 |
| 3x250+2x1/0+1x6 8kV | 919 | 14.7 | 3.81 | 6.35 | 70 | 560 | 8500 |
| 3x350+2x2/0+1x6 8kV | 1284 | 17.5 | 3.81 | 7.11 | 77 | 616 | 10500 |
| 3x500+2x4/0+1x6 8kV | 1830 | 21 | 3.81 | 7.49 | 86 | 688 | 14000 |
| 3x2+2x6+1x6 15kV | 249 | 7.3 | 5.33 | 5.97 | 59 | 472 | 4400 |
| 3x1+2x5+1x6 15kV | 312 | 8.2 | 5.33 | 5.97 | 61 | 488 | 5000 |
| 3x1/0+2x4+1x6 15kV | 391 | 9.2 | 5.33 | 6.35 | 63 | 504 | 5500 |
| 3x2/0+2x3+1x6 15kV | 493 | 10.3 | 5.33 | 6.35 | 66 | 528 | 6100 |
| 3x3/0+2x2+1x6 15kV | 620 | 11.5 | 5.33 | 6.73 | 70 | 560 | 7200 |
| 3x4/0+2x1+1x6 15kV | 782 | 12.9 | 5.33 | 6.73 | 73 | 584 | 8100 |
| 3x4/0+2x1+1x4 15kV | 782 | 12.9 | 5.33 | 6.73 | 73 | 584 | 8100 |
| 3x250+2x110+1x6 15kV | 919 | 14.7 | 5.33 | 6.73 | 77 | 616 | 9000 |
| 3x1+2x5+1x6 25kV | 312 | 8.2 | 7.49 | 6.73 | 72 | 576 | 6400 |
| 3x1/0+2x4+1x6 25kV | 391 | 9.2 | 7.49 | 6.73 | 75 | 600 | 7100 |
| 3x2/0+2x3+1x6 25kV | 493 | 10.3 | 7.49 | 7.11 | 78 | 624 | 7800 |
