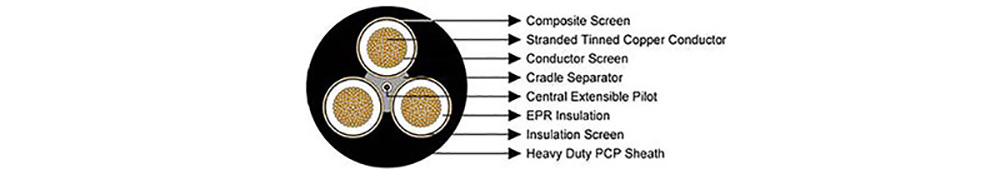

Type 210 Mining Cable Construction
| VOLTAGE | 1.1kV (Type 210.1) |
| 3×Conductors | Flexible stranded tinned annealed copper |
| CONDUCTOR SCREEN | Paper Separator |
| INSULATION | EPR (Ethylene Propylene Rubber) |
| INSULATION SCREEN | Semiconductive elastomer |
| BRAID | TCWB (Tinned Copper Wires with Polyamide yarns) |
| CABLE ASSEMBLY | Three screened power cores with central pilot core |
| OUTER SHEATH | PCP (Polychloroprene) - Heavy Duty, Oil Resistant, Flame Retardant |
| Sheath Colour | Black |
Type 210 Mining Cable Application
This cable is primarily used for hand-held boring machines & drills, occasionally acting as a flexible lead to other equipment where heavy duty service is required.
Type 210 Mining Cable Standards
- AS/NZS 1802:2003
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
Type 210 Mining Cable
| NO. CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER/SIZE STRAND No/mm | NOMINAL INSULATION THICKNESS mm | STRAND SIZE No/mm | AREA OF SCREEN mm | STRAND SIZE No/mm | THICKNESS OF COVERING mm | THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 1.5 | 30/0.25 | 1.4 | 7/0.25 | 5.2 | 24/02.0 | 0.8 | 3 | 23.7 | 83 |
| 3 | 2.5 | 30/0.25 | 1.5 | 7/0.25 | 5.8 | 24/02.0 | 0.8 | 3 | 25.1 | 92 |
