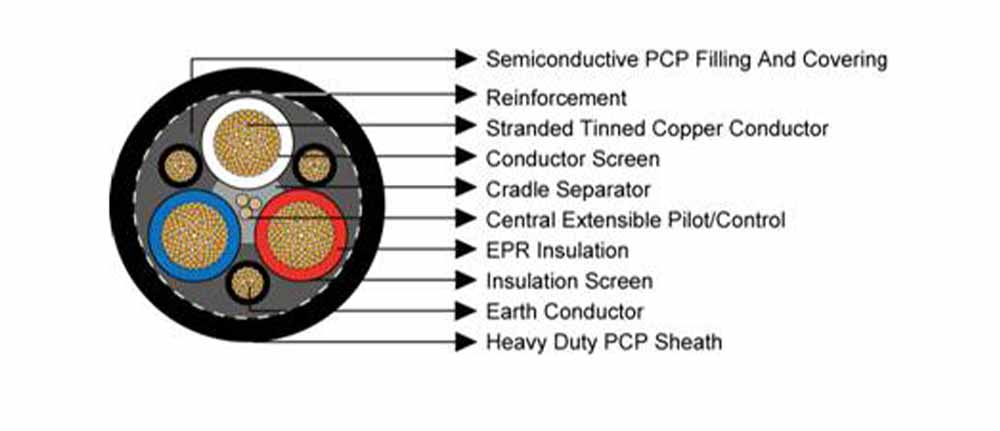

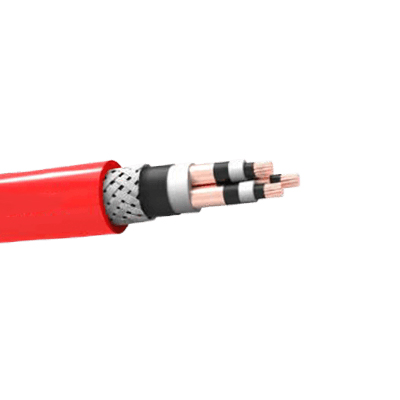

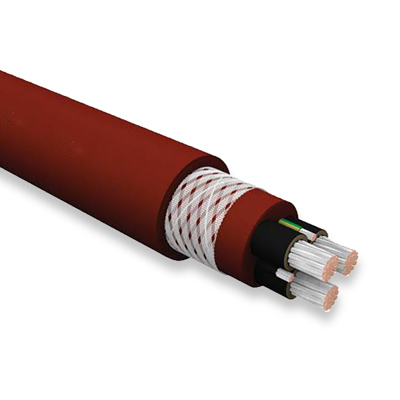

Type 245 Mining Cable Construction
| VOLTAGE | 1.1kV (Type 245.1) 3.3kV (Type 245.3) 6.6kV (Type 245.6) |
| CONDUCTOR | Tinned Copper |
| CONDUCTOR SCREEN | Paper Separator (1.1kV) Semi-conducting thermosetting material (3.3kV and above) |
| INSULATION | EPR (Ethylene Propylene Rubber) |
| INSULATION SCREEN | Synthetic tape (1.1kV) Semi-conducting thermosetting material (3.3kV and above) |
| SCREEN | Semi-conductive PCP (Polychloroprene) |
| EARTH COVERING | Semi-conductive PCP (Polychloroprene) |
| ASSEMBLY | Three screened power cores with earth and pilot core with cradle separator |
| INNER SHEATH | - |
| REINFORCEMENT BRAID | Polyamide yarns in open weave |
| OUTER SHEATH | HD-PCP (Heavy Duty Polychloroprene) |
Type 245 Mining Cable Application
Type 245 cables are mainly used as longwall shearer cables, and also for continuous miners and peripheral longwall cables. The cable has 3 central pilots for earth continuity monitoring and for control circuits.
Type 245 Mining Cable Characteristics
Voltage Rating
- 1.1kV – Type 245.1
- 3.3kV – Type 245.3
- 6.6kV – Type 245.6
Type 241 Mining Cable Standards
- AS/NZS 1802:2003
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
Type 245 Mining Cable Advantages
- High Flexibility: These cables are highly flexible, allowing for easy installation and movement in confined mining spaces.
- Robust Construction: The flexible rubber sheathing ensures the cable can withstand physical stress and environmental factors.
- Safety Compliance: Adhering to AS/NZS standards, these cables ensure maximum safety for mining operations.
- Enhanced Control: The inclusion of control circuits allows for better management and operation of mining machinery.
- Environmentally Friendly Mining Cables: Designed to minimize environmental impact, these cables are part of a sustainable mining solution.
- Type 245.1 Mining Cable
- Type 245.3 Mining Cable
- Type 245.6 Mining Cable
| NO. OF CORES | NOMINAL CONDUCTOR AREA mm2 | TRAND SIZE No/mm | NOMINAL INSULATION THICKNESS mm | CORE SCREEN | PILOT CONDUCTOR | THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/100m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| STRAND SIZE No/mm | AREA OF SCREEN mm2 | STRAND SIZE No/mm | THICKNESS OF COVERING mm |
|||||||
| 3 | 16 | 133/0.40 | 2.0 | 69/0.25 | 1.8 | 28/0.25 | 0.8 | 4.1 | 42.6 | 235 |
| 3 | 25 | 259/0.36 | 1.6 | 91/0.25 | 1.8 | 28/0.25 | 0.8 | 4.2 | 43.4 | 269 |
| 3 | 35 | 287/0.40 | 1.6 | 140/0.25 | 1.4 | 28/0.25 | 0.8 | 4.4 | 45.6 | 315 |
| 3 | 50 | 703/0.30 | 1.7 | 120/0.30 | 1.0 | 28/0.25 | 0.8 | 4.8 | 48.4 | 390 |
| 3 | 70 | 988/0.30 | 1.8 | 180/0.30 | 1.0 | 28/0.25 | 0.8 | 5.1 | 53.9 | 501 |
| 3 | 95 | 1332/0.30 | 2.0 | 150/0.30 | 1.0 | 28/0.25 | 0.8 | 5.6 | 60.4 | 630 |
| 3 | 120 | 1702/0.30 | 2.1 | 195/0.30 | 1.2 | 28/0.25 | 0.8 | 6.0 | 65.5 | 765 |
| 3 | 150 | 2146/0.30 | 2.3 | 235/03.0 | 1.2 | 28/0.25 | 0.8 | 6.3 | 70.5 | 915 |
| NO. OF CORES | NOMINAL CONDUCTOR AREA mm2 | TRAND SIZE No/mm | NOMINAL INSULATION THICKNESS mm | CORE SCREEN | PILOT CONDUCTOR | THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/100m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| STRAND SIZE No/mm | AREA OF SCREEN mm2 | STRAND SIZE No/mm | THICKNESS OF COVERING mm |
|||||||
| 3 | 25 | 259/0.36 | 3.0 | 91/0.25 | 1.5 | 28/0.25 | 0.8 | 5.2 | 51.1 | 338 |
| 3 | 35 | 287/0.40 | 3.0 | 140/0.25 | 1.0 | 28/0.25 | 0.8 | 5.4 | 54.5 | 398 |
| 3 | 50 | 703/0.30 | 3.0 | 120/0.30 | 1.0 | 28/0.25 | 0.8 | 5.7 | 56.8 | 490 |
| 3 | 70 | 988/0.30 | 3.0 | 180/0.30 | 1.2 | 28/0.25 | 0.8 | 6.0 | 61.2 | 592 |
| 3 | 95 | 1332/0.30 | 3.0 | 235/0.30 | 1.2 | 28/0.25 | 0.8 | 6.4 | 66.6 | 739 |
| 3 | 120 | 1702/0.30 | 3.0 | 300/0.30 | 1.2 | 28/0.25 | 0.8 | 6.7 | 71.0 | 870 |
| 3 | 150 | 2146/0.30 | 3.0 | 375/0.30 | 1.2 | 28/0.25 | 0.8 | 7.0 | 75.2 | 1028 |
| NO. OF CORES | NOMINAL CONDUCTOR AREA mm2 | TRAND SIZE No/mm | NOMINAL INSULATION THICKNESS mm | CORE SCREEN | PILOT CONDUCTOR | THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/100m |
||
|---|---|---|---|---|---|---|---|---|---|---|
| STRAND SIZE No/mm | AREA OF SCREEN mm2 | STRAND SIZE No/mm | THICKNESS OF COVERING mm |
|||||||
| 3 | 50 | 703/0.30 | 5.0 | 120/0.30 | 1.4 | 28/0.25 | 0.8 | 6.7 | 67.2 | 635 |
| 3 | 70 | 988/0.30 | 5.0 | 180/0.30 | 1.4 | 28/0.25 | 0.8 | 7.0 | 71.7 | 755 |
| 3 | 95 | 1332/0.30 | 5.0 | 235/0.30 | 1.4 | 28/0.25 | 0.8 | 7.4 | 77.1 | 905 |
| 3 | 120 | 1702/0.30 | 5.0 | 300/0.30 | 1.4 | 28/0.25 | 0.8 | 7.7 | 81.3 | 1050 |
| 3 | 150 | 2146/0.30 | 5.0 | 375/0.30 | 1.4 | 28/0.25 | 0.8 | 8.0 | 85.8 | 1210 |
