Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Screened Rubber Mining Cable

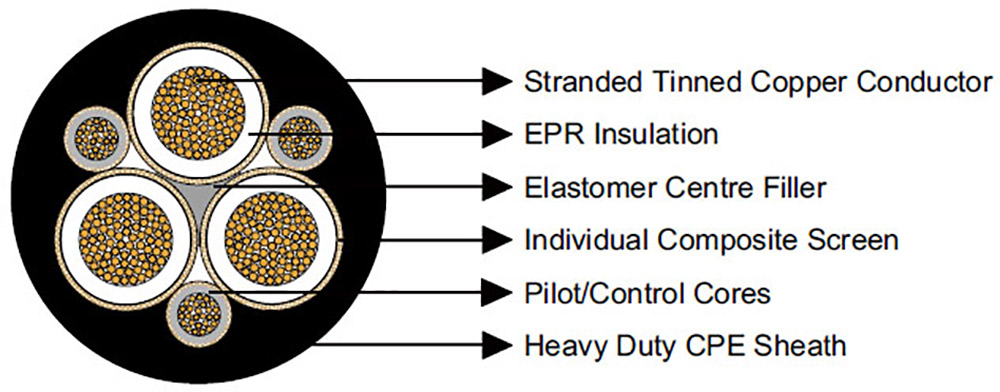

Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Mining Cable Construction

Conductors	Stranded tinned annealed copper conductor.
Insulation	EPR.
Filling	Elastomer centre filler.
Pilot/Control Cores	EPR covered and composite screened flexible stranded tinned copper conductor.
Individual Composite Screen (earth conductor)	Tinned annealed copper braiding interwove with polyester yarn.
Sheath	Heavy duty CPE sheath.

Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Mining Cable Application

Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Screened cables are used for wiring of machines or between machines and equipment where a rubber cable is desired. These cables are also used for longwall lighting circuits, and may contain pilot and controlcores or twisted pair and screened cores.

Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Mining Cable Standards

AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Mining Cable Specification

Number of Core	Nominal Conductor Area	Strand Size	Insulation Thickness	Core screen		Pilot Conductor			Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
Number of Core	Nominal Conductor Area	Strand Size	Insulation Thickness	Strand Size	Area of Screen	Number of Pilots	Strand Size	Thickness of Covering	Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
	mm2	No/mm	mm	mm	mm2		No/mm	mm	mm	mm	kg/100m
Type 2S 1.1/1kV Individually Screened
10	77/0.40	3	1.2	0.2	7.9	3	–	–	1.8	22.1	69
10	77/0.40	4	1.2	0.2	7.9	4	–	–	1.8	23	93
16	126/0.40	2	1.2	0.2	9	2	–	–	1.8	22	81
16	126/0.40	3	1.2	0.2	9	3	–	–	1.8	23.4	100
16	126/0.40	4	1.2	0.2	9	4	–	–	1.8	26.8	135
10	77/0.40	3	1.2	0.2	7.9	3	30/0.20	1	1.8	22.5	87
16	126/0.40	2	1.2	0.2	9	2	30/0.20	1	1.8	22.7	88
16	126/0.40	3	1.2	0.2	9	3	30/0.20	1	1.8	27.7	130
25	209/0.40	3	1.4	0.2	11.3	3	30/0.20	1	1.8	29.2	165
35	285/0.40	3	1.4	0.2	12.4	3	30/0.20	1	1.8	31.6	200
50	380/0.40	3	1.6	0.25	17.5	3	30/0.20	1	1.9	36.1	260
Type 2S 1.1/1kV Individually and Collectively Screened
1.5	30/0.25	30	1	0.3	14	–	–	–	1.9	32.6	170
Type 2S 3.3/3.3Kv Individually Screened
10	77/0.40	3	3	0.2	11.3	3	30/0.25	1	1.8	28.9	130
16	126/0.40	3	3	0.2	12.4	3	30/0.25	1	1.8	31.3	160
25	209/0.40	3	3	0.2	13.6	3	30/0.25	1	1.9	34.8	210
35	285/0.40	3	3	0.2	15.3	3	30/0.25	1	2	37.8	250
50	380/0.40	3	3	0.2	17	3	30/0.25	1	2.1	41.3	305
70	203/0.67	3	3	0.3	30.5	3	30/0.25	1	2.2	46.8	415
95	259/0.67	3	3	0.3	30.5	3	30/0.25	1	2.3	49.6	490
120	336/0.67	3	3	0.4	47.5	3	30/0.25	1	2.5	55	620
