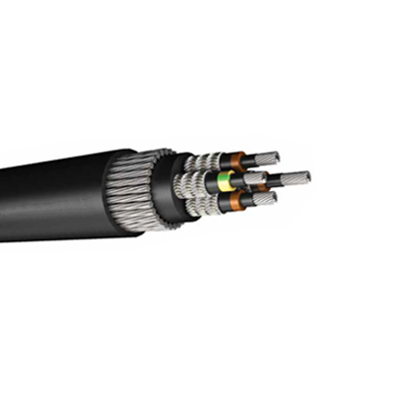

Type 2S 1.1/1.1KV Collectively Mining Cable Construction
| Conductors | Stranded tinned annealed copper conductor. |
| Insulation | EPR. |
| Filling | Elastomer centre filler. |
| Bedding | Polyester tape. |
| Composite Screen (earth conductor) | Tinned annealed copper braiding interwove with polyester yarn. |
| Sheath | Heavy duty CPE sheath |
Type 2S 1.1/1.1KV Collectively Mining Cable Application
Type 2S cables are remarkably versatile. Their applications range from powering large stationary equipment to supplying mobile machinery and lighting systems.
Type 2S 1.1/1.1KV Collectively Mining Cable Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808
Type 2S 1.1/1.1KV Collectively Mining Cable Specification
| Number of Cores | Nominal Conductor Area | Strand Size | Insulation Thickness | Core screen | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight | |
|---|---|---|---|---|---|---|---|---|
| Strand Size | Area of Screen | |||||||
| mm² | No/mm | mm | mm | mm² | mm | mm | kg/100m | |
| 2 | 1.5 | 30/0.25 | 1 | 0.2 | 5.3 | 1.8 | 14.7 | 17 |
| 4 | 1.5 | 30/0.25 | 1 | 0.2 | 12.1 | 1.8 | 19.9 | 26 |
| 6 | 1.5 | 30/0.25 | 1 | 0.2 | 22.6 | 1.8 | 25.7 | 35 |
| 16 | 1.5 | 30/0.25 | 1 | 0.25 | 113.1 | 1.8 | 47.1 | 71 |
| 20 | 1.5 | 30/0.25 | 1 | 0.25 | 159 | 1.8 | 53.2 | 82 |
