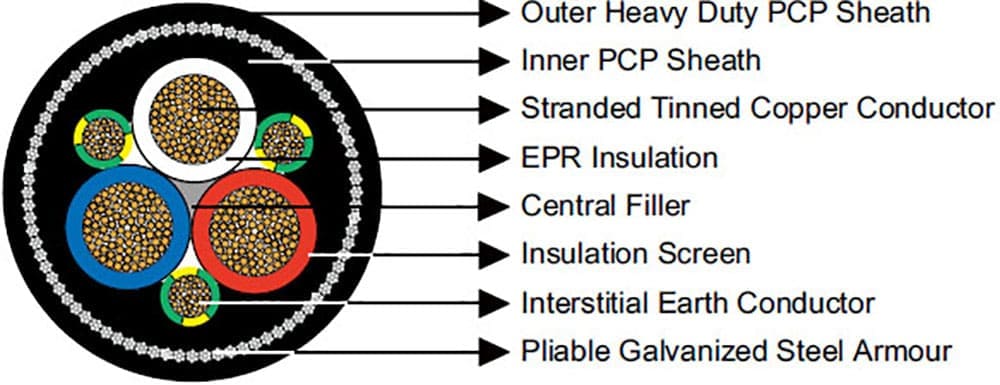

Type 412 Mining Cable Construction
| 3×Conductors | Flexible stranded tinned annealed copper conductor. |
| Conductor Screen | Polyester barrier tape. |
| Insulation | EPR. |
| Insulation Screen | Semiconductive elastomer. |
| Filler | Elastomer centre filler. |
| 3×Interstitial Earth Conductor | EPR covered flexible stranded tinned copper conductor. |
| Inner Sheath | PCP sheath. CPE/CSP sheath can be offered upon request. |
| Pliable Armour | Galvanized low carbon (mild) steel strands. |
| Outer Sheath | Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Type 412 Mining Cable Technical Data
| Voltage Rating | 1.1kV |
| Operating Conductor Temperature | -25 to 90℃ |
| Emergency Conductor Temperature | 130℃ |
| Short Circuit Conductor Temperature | Max. 250℃ for 5 sec |
| Max. Working Tension | 0.02kN/mm² (total) |
Type 412 Mining Cable Application
Type 412 armored Mining cable used as a feeder in areas where high impact resistance is required. Used in mines as supply cable where mechanical protection and strength is required (except for underground coal mines).
Type 412 Mining Cable Standards
- AS/NZS 2802:2000
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
Type 412 Mining Cable Specification
| Nominal Conductor Area | Strand Size | Insulation Thickness | Earth Conductor | Pliable Armour Size | Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
||
|---|---|---|---|---|---|---|---|---|---|
| Strand Size | Thickness of Covering | Inner | Outer | ||||||
| mm² | No/mm | mm | No/mm | mm | No/mm | mm | mm | mm | kg/100m |
| 16 | 126/0.40 | 1.6 | 81/0.30 | 0.6 | 7/0.90 | 2.5 | 3.8 | 38.3 | 265 |
| 25 | 209/0.40 | 1.6 | 81/0.30 | 0.6 | 7/0.90 | 2.5 | 3.8 | 38.4 | 294 |
| 35 | 285/0.40 | 1.6 | 81/0.30 | 0.6 | 7/0.90 | 2.5 | 4.0 | 44.6 | 402 |
| 50 | 380/0.40 | 1.7 | 120/0.30 | 0.8 | 7/0.90 | 2.5 | 4.4 | 49.2 | 500 |
| 70 | 203/0.67 | 1.8 | 39/0.67 | 0.8 | 7/0.90 | 2.5 | 4.8 | 55.4 | 655 |
| 95 | 259/0.67 | 2.0 | 48/0.67 | 0.8 | 7/0.90 | 2.5 | 5.4 | 60.1 | 775 |
| 120 | 336/0.67 | 2.1 | 60/0.67 | 1.0 | 7/0.90 | 3.5 | 5.8 | 68.1 | 990 |
| 150 | 427/0.67 | 2.3 | 77/0.67 | 1.0 | 7/0.90 | 3.5 | 6.3 | 73.8 | 1186 |
| 185 | 518/0.67 | 2.5 | 91/0.67 | 1.0 | 7/0.90 | 3.5 | 6.8 | 80.2 | 1360 |
| 240 | 672/0.67 | 2.8 | 119/0.67 | 1.2 | 7/0.90 | 3.5 | 7.5 | 88.7 | 1670 |
| 300 | 854/0.67 | 3.0 | 156/0.67 | 1.2 | 7/1.25 | 4.5 | 8.2 | 100.9 | 2200 |
