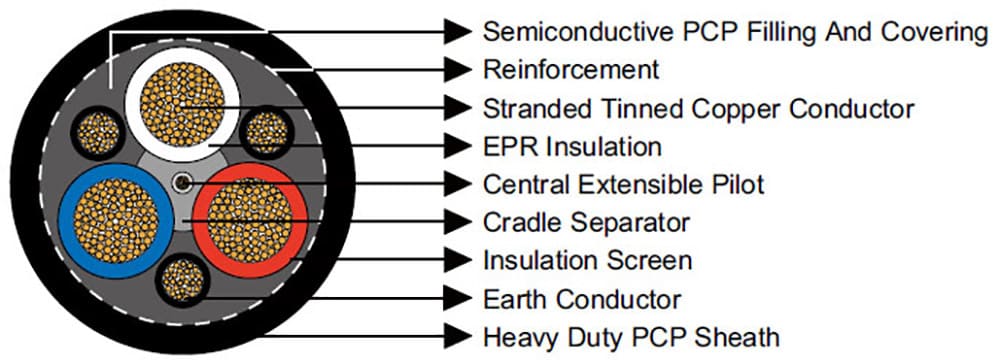

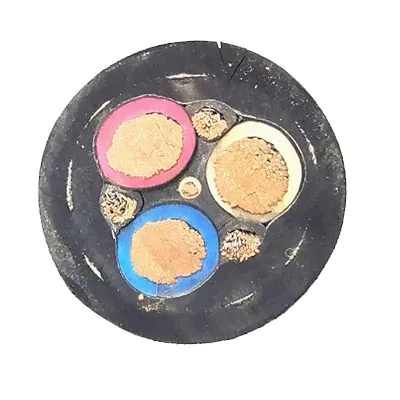

Type 441 Mining Cable Construction
| VOLTAGE | 1.1kV (Type 441.1) 3.3kV (Type 441.3) 6.6kV (Type 441.6) 11kV (Type 441.11) 22kV (Type 221.22) |
| CONDUCTOR | Tinned annealed copper wires |
| CONDUCTOR SCREEN | Paper Separator (1.1kV) Semi-conducting tape and thermosetting material (3.3kV and above) |
| INSULATION | EPR (Ethylene Propylene Rubber) type R-EP-90 and XR-EP-90 |
| INSULATION SCREEN | Paper Separator (1.1kV) Semi-conducting tape and thermosetting material (3.3kV and above) |
| BRAID | - |
| CABLE ASSEMBLY | Three screened power and three earth cores laid up with right hand direction on cradle separator with central pilot core |
| INNER SHEATH | Semi-conductive thermosetting compound |
| ARMOUR | Polyamide Yarns |
| OUTER SHEATH | HD-CSP (Heavy duty Chlorosulphonated Polyethylene) extra heavy duty, oil resistant and flame retardant |
Type 441 Mining Cable Application
Type 441 Class 2 Series Mining Cable is designed for many uses, suitable for trailing and also suitable for reeling applications.
Being a class 1 cable, Type 441 Class 1 series Mining cable has lower insulation and sheath radials than class 2. It is therefore suitable for use with materials handling equipment, and applications that call for a smaller overall diameter and mass.
Type 441 Mining Cable Characteristics
Voltage Rating
- Type 441.1 – 1.1kV
- Type 441.3 – 3.3kV
- Type 441.6 – 6.6kV
- Type 441.11 – 11kV
- Type 441.22 – 22kV
Temperature Rating
-25℃ to +90℃
Type 441 Mining Cable Standards
AS/NZS 2802: 2000, AS/NZS 1125:2001, AS/NZS 2802:2003,
Water resistant, Flame retardant, UV, sunlight, ozone resistant, Oil resistant
- Type 441.1-Class 2 Specification
- Type 441.3-Class 1 Specification
- Type 441.6-Class 1 Specification
- Type 441.11-Class 1 Specification
- Type 441.22-Class 1 Specification
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm | NOMINAL DIAMETER OVER INSULATION mm | CORE SCREEN SIZE mm | AREA OF SCREEN mm2 | PILOT COND. STRAND/SIZE No/mm | THICKNESS PILOT CORE COVERING mm | THICKNESS PILOT CORE COVERING mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3+3 | 6 | 84x0.3 | 1.5 | 6.5 | 33/0.3 | 2.3 | 24/0.2 | 0.8 | 3.8 | 28.6 | 111 |
| 3+3 | 10 | 77x0.4 | 1.5 | 7.7 | 51/0.3 | 3.6 | 24/0.2 | 0.8 | 3.8 | 31.2 | 136 |
| 3+3 | 16 | 126x0.4 | 1.6 | 9 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 3.9 | 34.1 | 176 |
| 3+3 | 25 | 209x0.4 | 1.6 | 10.5 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 4.2 | 37.8 | 231 |
| 3+3 | 35 | 285x0.4 | 1.6 | 12.1 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 4.4 | 41.1 | 274 |
| 3+3 | 50 | 380x0.4 | 1.7 | 13.8 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 4.9 | 45.8 | 349 |
| 3+3 | 70 | 361x0.5 | 1.8 | 16.1 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 5.3 | 52.2 | 481 |
| 3+3 | 95 | 475x0.5 | 2 | 17.7 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 5.8 | 56.6 | 579 |
| 3+3 | 120 | 608x0.5 | 2.1 | 20 | 165/0.4 | 21.2 | 40/0.2 | 0.8 | 6.3 | 62.6 | 724 |
| 3+3 | 150 | 740x0.5 | 2.3 | 22.2 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 6.7 | 68.3 | 881 |
| 3+3 | 185 | 925x0.5 | 2.5 | 24.7 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 7.3 | 74.8 | 1049 |
| 3+3 | 240 | 1221x0.5 | 2.8 | 27.9 | 214/0.5 | 42 | 40/0.2 | 0.8 | 8 | 83.4 | 1329 |
| 3+3 | 300 | 1525x0.5 | 3 | 31 | 280/0.5 | 55 | 40/0.2 | 0.8 | 8.7 | 31.1 | 1629 |
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm | NOMINAL DIAMETER OVER INSULATION mm | CORE SCREEN SIZE mm | AREA OF SCREEN mm2 | PILOT COND. STRAND/SIZE No/mm | THICKNESS PILOT CORE COVERING mm | THICKNESS PILOT CORE COVERING mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3+3 | 16 | 126x0.4 | 2.2 | 12.4 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 4.6 | 43 | 241 |
| 3+3 | 25 | 209x0.4 | 2.2 | 14 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 4.9 | 46.8 | 304 |
| 3+3 | 35 | 285x0.4 | 2.2 | 15.3 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 5.2 | 50.2 | 359 |
| 3+3 | 50 | 380x0.4 | 2.4 | 17.1 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 5.7 | 55.4 | 446 |
| 3+3 | 70 | 361x0.5 | 2.4 | 19.1 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 6 | 60.3 | 571 |
| 3+3 | 95 | 475x0.5 | 2.4 | 20.3 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 6.4 | 63.5 | 659 |
| 3+3 | 120 | 608x0.5 | 2.4 | 22.4 | 165/0.4 | 21.2 | 40/0.2 | 0.8 | 6.5 | 68.5 | 794 |
| 3+3 | 150 | 740x0.5 | 2.4 | 24.2 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 6.6 | 72.6 | 931 |
| 3+3 | 185 | 925x0.5 | 2.4 | 26.3 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 6.7 | 77.4 | 1080 |
| 3+3 | 240 | 1221x0.5 | 2.4 | 28.9 | 214/0.5 | 42 | 40/0.2 | 0.8 | 6.9 | 83.3 | 1310 |
| 3+3 | 300 | 1525x0.5 | 2.4 | 31.5 | 280/0.5 | 55 | 40/0.2 | 0.8 | 7 | 89.2 | 1570 |
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm | NOMINAL DIAMETER OVER INSULATION mm | CORE SCREEN SIZE mm | AREA OF SCREEN mm2 | PILOT COND. STRAND/SIZE No/mm | THICKNESS PILOT CORE COVERING mm | THICKNESS PILOT CORE COVERING mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3+3 | 16 | 126x0.4 | 3 | 14 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 5 | 47.4 | 241 |
| 3+3 | 25 | 209x0.4 | 3 | 15.5 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 5.3 | 51.2 | 304 |
| 3+3 | 35 | 285x0.4 | 3 | 16.8 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 5.6 | 54.7 | 359 |
| 3+3 | 50 | 380x0.4 | 3 | 18.3 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 6 | 58.8 | 446 |
| 3+3 | 70 | 361x0.5 | 3 | 19.1 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 6.3 | 63.8 | 571 |
| 3+3 | 95 | 475x0.5 | 3 | 20.3 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 6.4 | 66.4 | 659 |
| 3+3 | 120 | 608x0.5 | 3 | 21.5 | 165/0.4 | 21.2 | 40/0.2 | 0.8 | 6.6 | 71.3 | 794 |
| 3+3 | 150 | 740x0.5 | 3 | 23.6 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 6.7 | 75.4 | 931 |
| 3+3 | 185 | 925x0.5 | 3 | 25.4 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 6.8 | 80.1 | 1080 |
| 3+3 | 240 | 1221x0.5 | 3 | 27.5 | 214/0.5 | 42 | 40/0.2 | 0.8 | 7 | 86.1 | 1310 |
| 3+3 | 300 | 1525x0.5 | 3 | 30.1 | 280/0.5 | 55 | 40/0.2 | 0.8 | 7.1 | 91.9 | 1570 |
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm | NOMINAL DIAMETER OVER INSULATION mm | CORE SCREEN SIZE mm | AREA OF SCREEN mm2 | PILOT COND. STRAND/SIZE No/mm | THICKNESS PILOT CORE COVERING mm | THICKNESS PILOT CORE COVERING mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3+3 | 25 | 209x0.4 | 5 | 19.6 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 6.3 | 62.1 | 481 |
| 3+3 | 35 | 285x0.4 | 5 | 20.8 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 6.4 | 65.1 | 542 |
| 3+3 | 50 | 380x0.4 | 5 | 22.4 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 6.5 | 68.7 | 620 |
| 3+3 | 70 | 361x0.5 | 5 | 24.4 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 6.6 | 63.8 | 750 |
| 3+3 | 95 | 475x0.5 | 5 | 25.6 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 6.8 | 73 | 850 |
| 3+3 | 120 | 608x0.5 | 5 | 27.7 | 165/0.4 | 21.2 | 40/0.2 | 0.8 | 6.9 | 76.2 | 986 |
| 3+3 | 150 | 740x0.5 | 5 | 29.5 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 7 | 80.8 | 1129 |
| 3+3 | 185 | 925x0.5 | 5 | 31.6 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 7.1 | 85 | 1289 |
| 3+3 | 240 | 1221x0.5 | 5 | 34.2 | 214/0.5 | 42 | 40/0.2 | 0.8 | 7.3 | 89.6 | 1539 |
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm | NOMINAL DIAMETER OVER INSULATION mm | CORE SCREEN SIZE mm | AREA OF SCREEN mm2 | PILOT COND. STRAND/SIZE No/mm | THICKNESS PILOT CORE COVERING mm | THICKNESS PILOT CORE COVERING mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3+3 | 35 | 7.6 | 285x0.4 | 26.3 | 81/0.3 | 5.7 | 24/0.2 | 0.8 | 6.9 | 78 | 733 |
| 3+3 | 50 | 7.6 | 380x0.4 | 27.8 | 120/0.3 | 8.5 | 40/0.2 | 0.8 | 7 | 81.5 | 820 |
| 3+3 | 70 | 7.6 | 361x0.5 | 29.8 | 110/0.4 | 13.8 | 40/0.2 | 0.8 | 7.1 | 85.9 | 960 |
| 3+3 | 95 | 7.6 | 475x0.5 | 31 | 135/0.4 | 16.9 | 40/0.2 | 0.8 | 7.2 | 88.7 | 1070 |
| 3+3 | 120 | 7.6 | 608x0.5 | 33.1 | 165/0.4 | 21.2 | 40/0.2 | 0.8 | 7.3 | 93.6 | 1220 |
| 3+3 | 150 | 7.6 | 740x0.5 | 34.9 | 216/0.4 | 27.1 | 40/0.2 | 0.8 | 7.4 | 97.6 | 1380 |
| 3+3 | 185 | 7.6 | 925x0.5 | 37 | 252/0.4 | 32.1 | 40/0.2 | 0.8 | 7.6 | 102.6 | 1545 |
