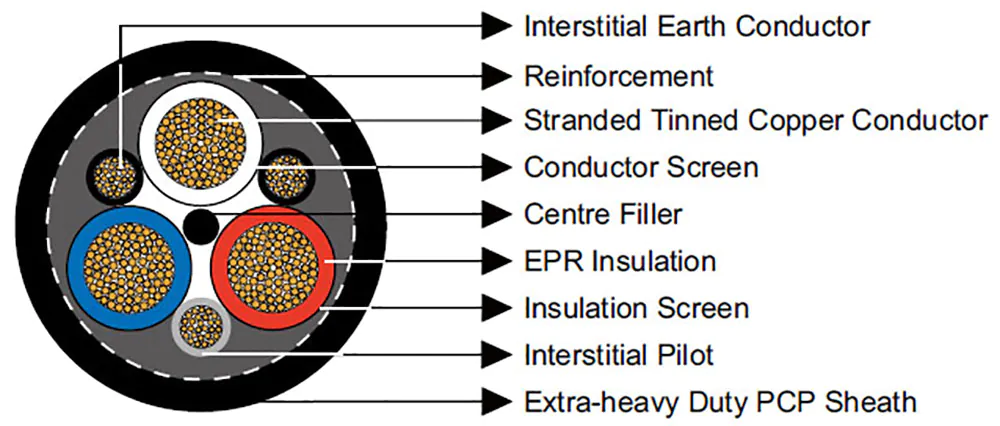

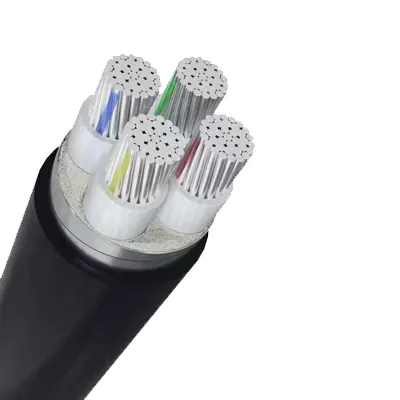

Type 455 Mining Cable Construction
| VOLTAGE | 1.1kV (Type 455.1) 3.3kV (Type 455.3) 6.6kV (Type 455.6) 11kV (Type 455.11) 22kV (Type 455.22) 33kV (Type 455.33) |
| CONDUCTOR | Tinned annealed copper wires |
| CONDUCTOR SCREEN | Semi-conductive tape + thermosetting compound |
| INSULATION | EPR (Ethylene Propylene Rubber) type XR-EP-90 |
| INSULATION SCREEN | Semi-conductive thermosetting compound |
| CABLE ASSEMBLY | Three screened power, two earth and one pilot core laid up with right hand direction on the rubber centre filler |
| BRAID | Polyamide Yarns |
| INNER SHEATH | Semi-conductive thermosetting compound |
| ARMOUR | Polyamide yarns |
| OUTER SHEATH | HD-CSP (Heavy-duty Chlorosulphonated Polyethylene) - extra heavy duty, oil resistant and flame retardant |
Type 455 Mining Cable Application
Semi conductive screened power cores cable with three pilot cores made for general purpose in slow reeling and trailing applications. 3.3/3.3 kV to 11/11 kV cables for use with draglines, shovels, excavators, wharf cranes, and materials handling equipment. The cable is similar to Type 450 cables, without a composite insulation screen.
Type 455 Mining Cable Characteristics
Voltage Rating
- Type 455.3 – 3.3kV
- Type 455.6 – 6.6kV
- Type 455.11 – 11kV
- Type 455.22 – 22kV
- Type 455.33 – 33kV
Temperature Rating
-25℃ to +90℃
Type 455 Mining Cable Standards
AS/NZS 2802: 2000, AS/NZS 1125:2001, AS/NZS 2802:2003,
Water resistant
Flame retardant
UV, sunlight, ozone resistant
Oil resistant
- Type 455.3-Class 1 Specification
- Type 455.6 Class1 Specification
- Type 455.11 Class1 Specification
- Type 455.22 Class1 Specification
- Type 455.33 Class1 Specification
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm2 | NOMINAL DIAMETER OVER INSULATION mm | PILOT COND. STRAND/SIZE No/mm | THICKNESS OF EARTH COVERING mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|
| 3+2+1 | 16 | 126/0.4 | 2.2 | 12.4 | 120/0.3 | 1.4 | 4.2 | 39.5 | 224 |
| 3+2+1 | 25 | 209/0.4 | 2.2 | 14 | 120/0.3 | 1.4 | 4.5 | 43.4 | 281 |
| 3+2+1 | 35 | 285/0.4 | 2.2 | 15.2 | 120/0.3 | 1.4 | 4.8 | 46.8 | 336 |
| 3+2+1 | 50 | 380/0.4 | 2.4 | 17.1 | 183/0.3 | 1.4 | 5.3 | 52 | 424 |
| 3+2+1 | 70 | 361x0.5 | 2.4 | 19.1 | 152/0.4 | 1.4 | 5.7 | 57 | 556 |
| 3+2+1 | 95 | 475x0.5 | 2.4 | 20.3 | 196x0.4 | 1.6 | 6.1 | 60.5 | 646 |
| 3+2+1 | 120 | 608x0.5 | 2.4 | 22.4 | 236/0.4 | 1.6 | 6.4 | 65.6 | 786 |
| 3+2+1 | 150 | 740x0.5 | 2.4 | 24.2 | 314/0.4 | 1.6 | 6.5 | 69.6 | 931 |
| 3+2+1 | 185 | 925x0.5 | 2.4 | 26.3 | 237/0.4 | 1.6 | 6.6 | 74.5 | 1072 |
| 3+2+1 | 240 | 1221x0.5 | 2.4 | 28.9 | 302/0.5 | 1.6 | 6.8 | 80.4 | 1310 |
| 3+2+1 | 300 | 1525x0.5 | 2.4 | 31.5 | 409/0.5 | 1.6 | 6.9 | 86.2 | 1602 |
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm2 | NOMINAL DIAMETER OVER INSULATION mm | PILOT COND. STRAND/SIZE No/mm | THICKNESS OF EARTH COVERING mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|
| 3+2+1 | 16 | 126/0.4 | 3 | 14 | 120/0.3 | 1.4 | 4.7 | 44 | 266 |
| 3+2+1 | 25 | 209/0.4 | 3 | 15.5 | 120/0.3 | 1.6 | 5 | 47.9 | 332 |
| 3+2+1 | 35 | 285/0.4 | 3 | 16.8 | 120/0.3 | 1.6 | 5.3 | 51.4 | 387 |
| 3+2+1 | 50 | 380/0.4 | 3 | 18.3 | 177/0.3 | 1.6 | 5.6 | 55.1 | 466 |
| 3+2+1 | 70 | 361x0.5 | 3 | 20.3 | 152/0.4 | 1.6 | 6 | 60.2 | 597 |
| 3+2+1 | 95 | 475x0.5 | 3 | 21.5 | 196x0.4 | 1.8 | 6.3 | 63.4 | 692 |
| 3+2+1 | 120 | 608x0.5 | 3 | 23.6 | 236/0.4 | 1.8 | 6.5 | 68.4 | 826 |
| 3+2+1 | 150 | 740x0.5 | 3 | 25.4 | 314/0.4 | 1.8 | 6.6 | 72.5 | 977 |
| 3+2+1 | 185 | 925x0.5 | 3 | 27.5 | 237/0.4 | 1.8 | 6.7 | 77.2 | 1122 |
| 3+2+1 | 240 | 1221x0.5 | 3 | 30.1 | 302/0.5 | 1.8 | 6.9 | 83.2 | 1361 |
| 3+2+1 | 300 | 1525x0.5 | 3 | 32.7 | 409/0.5 | 1.8 | 7 | 89 | 1652 |
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm2 | NOMINAL DIAMETER OVER INSULATION mm | PILOT COND. STRAND/SIZE No/mm | THICKNESS OF EARTH COVERING mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|
| 3+2+1 | 16 | 126/0.4 | 5 | 12.4 | 120/0.3 | 2 | 5.8 | 55 | 392 |
| 3+2+1 | 25 | 209/0.4 | 5 | 19.6 | 120/0.3 | 2 | 6.1 | 59.1 | 462 |
| 3+2+1 | 35 | 285/0.4 | 5 | 20.9 | 120/0.3 | 2 | 6.3 | 62.4 | 527 |
| 3+2+1 | 50 | 380/0.4 | 5 | 22.4 | 177/0.3 | 2 | 6.4 | 65.7 | 607 |
| 3+2+1 | 70 | 361x0.5 | 5 | 24.4 | 152/0.4 | 2 | 6.5 | 70.2 | 742 |
| 3+2+1 | 95 | 475x0.5 | 5 | 25.6 | 196x0.4 | 2.2 | 6.7 | 73.4 | 837 |
| 3+2+1 | 120 | 608x0.5 | 5 | 27.7 | 236/0.4 | 2.2 | 6.8 | 78 | 982 |
| 3+2+1 | 150 | 740x0.5 | 5 | 29.5 | 314/0.4 | 2.2 | 6.9 | 82.1 | 1143 |
| 3+2+1 | 185 | 925x0.5 | 5 | 31.6 | 237/0.4 | 2.2 | 7 | 86.9 | 1305 |
| 3+2+1 | 240 | 1221x0.5 | 5 | 34.2 | 302/0.5 | 2.2 | 7.2 | 92.9 | 1553 |
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm2 | NOMINAL DIAMETER OVER INSULATION mm | PILOT COND. STRAND/SIZE No/mm | THICKNESS OF EARTH COVERING mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|
| 3+2+1 | 16 | 126/0.4 | 7.6 | 23.5 | 120/0.3 | 2.5 | 6.6 | 68.5 | 578 |
| 3+2+1 | 25 | 209/0.4 | 7.6 | 25 | 120/0.3 | 2.5 | 6.6 | 71.7 | 653 |
| 3+2+1 | 35 | 285/0.4 | 7.6 | 26.3 | 120/0.3 | 2.5 | 6.7 | 74.8 | 719 |
| 3+2+1 | 50 | 380/0.4 | 7.6 | 27.8 | 183/0.3 | 2.5 | 6.8 | 78.3 | 810 |
| 3+2+1 | 70 | 361x0.5 | 7.6 | 29.8 | 152/0.4 | 2.5 | 7 | 83 | 956 |
| 3+2+1 | 95 | 475x0.5 | 7.6 | 31 | 196x0.4 | 2.5 | 7.1 | 85.8 | 1061 |
| 3+2+1 | 120 | 608x0.5 | 7.6 | 33.1 | 236/0.4 | 2.5 | 7.2 | 90.6 | 1221 |
| 3+2+1 | 150 | 740x0.5 | 7.6 | 34.9 | 314/0.4 | 2.5 | 7.3 | 94.7 | 1392 |
| 3+2+1 | 185 | 925x0.5 | 7.6 | 37 | 237/0.5 | 2.5 | 7.4 | 99.2 | 1564 |
| NO.CORES | NOMINAL CONDUCTOR AREA mm2 | NUMBER AND NOMINAL DIAMETER OF WIRES n x mm | THICKNESS OF INSULATION mm2 | NOMINAL DIAMETER OVER INSULATION mm | PILOT COND. STRAND/SIZE No/mm | THICKNESS OF EARTH COVERING mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/100m |
|---|---|---|---|---|---|---|---|---|---|
| 3+2+1 | 16 | 126/0.4 | 10.5 | 28.7 | 120/0.3 | 2.5 | 7 | 83 | 822 |
| 3+2+1 | 25 | 209/0.4 | 10.5 | 30.1 | 120/0.3 | 2.5 | 7.1 | 86.4 | 920 |
| 3+2+1 | 35 | 285/0.4 | 10.5 | 31.5 | 120/0.3 | 2.5 | 7.2 | 89.4 | 993 |
| 3+2+1 | 50 | 380/0.4 | 10.5 | 34.1 | 183/0.3 | 2.5 | 7.3 | 92.8 | 1092 |
| 3+2+1 | 70 | 361x0.5 | 10.5 | 36.1 | 152/0.4 | 2.5 | 7.4 | 97.4 | 1254 |
| 3+2+1 | 95 | 475x0.5 | 10.5 | 37.3 | 196x0.4 | 2.5 | 7.6 | 100.5 | 1372 |
| 3+2+1 | 120 | 608x0.5 | 10.5 | 39.4 | 236/0.4 | 2.5 | 7.7 | 105.2 | 1543 |
